Aviation engines; design--construction--operation and repair; (1919)
Pagé, Victor Wilfred, 1885-1947 · New York, The Norman W. Henley publishing co. · leaf 527

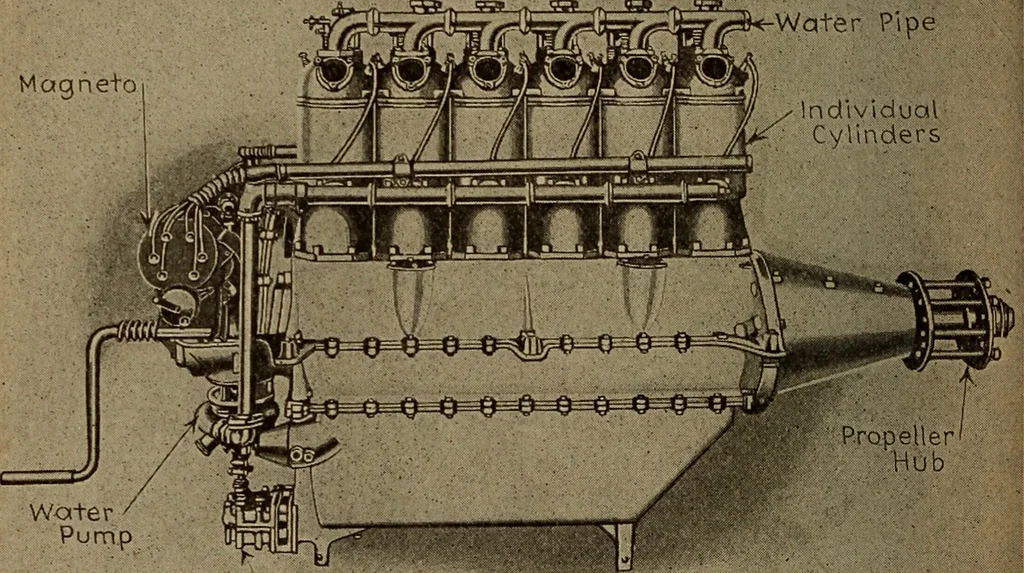

his 528 Aviation Engines motor are made of the highest grades of steel obtainableas are the studs, mits and bolts. The upper and lowerparts of crank-case are made of composition aluminumcasting. Lower crank-case is made of high grade alu-minum composition casting and is bolted directly to theupper… … Water /Pump Oil Pump. Fig. 236.—The Six-Cylinder Aeromarine Engine. vided if needed to meet greater endurance requirements.Oil is forced under pressure to all bearings by means ofhigh-pressured duplex-geared pumps. One side of thispump delivers oil under pressure to all the bearings,while the other…
Airplanes
