Aviation engines, design - construction - operation and repair; a complete, practical treatise outlining clearly the elements of internal combustion engineering with special reference to the design, construction, operation and repair of airplane power plants; also the auxiliary engine systems, such as lubrication, carburetion, ignition and cooling. It includes complete instructions for engine repairing and systematic location of troubles, tool equipment and use of tools, also outlines the latest mechanical processes (1917)
Pagé, Victor Wilfred, 1885-1947 · New York, The Norman W. Henley Publishing Company · leaf 560

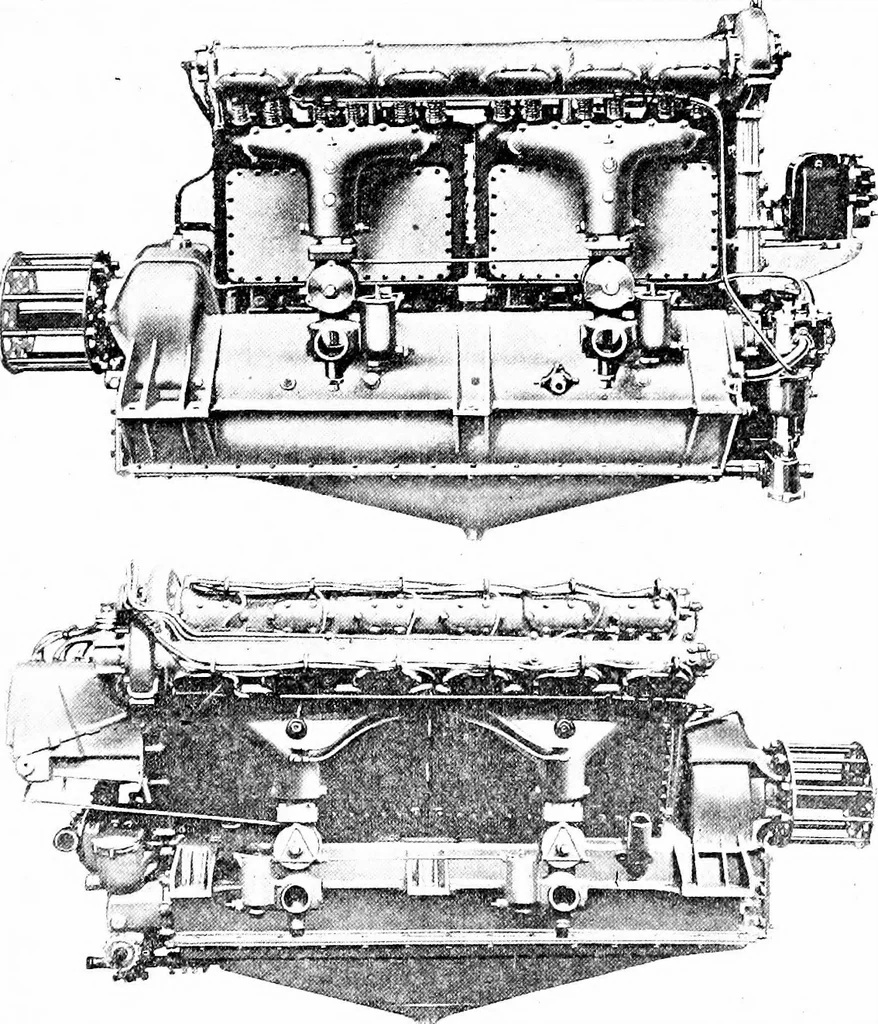

e cam-shaft operates the three valves. The modern Sunbeam engines operate with a meaneffective pressure of 135 pounds with a compression ratioof 6 to 1 sea level. The connecting rods are of the articu-lated type as in the Eenault motor and are very short. Sunbeam Aviation Engines 5.59 The weight of… … Fig. 247.—At Top, the Sunbeam Overhead Valve 170 Horse-Power Six-Cylinder Engine. Below, Side View of Sunbeam 350 Horse-PowerTwelve-Cylinder Vee Engine. drawing the oil off from the base, whence it is deliveredto the filter and cooling system. It then is pumped by aseparate high pressure gear pump…
