Elements of graphic dynamics; an elementary textbook for students of mechanics and engineering (1919)
Andrews, Ewart S. (Ewart Sigmund) · London, Chapman and Hall, Ltd. · leaf 118

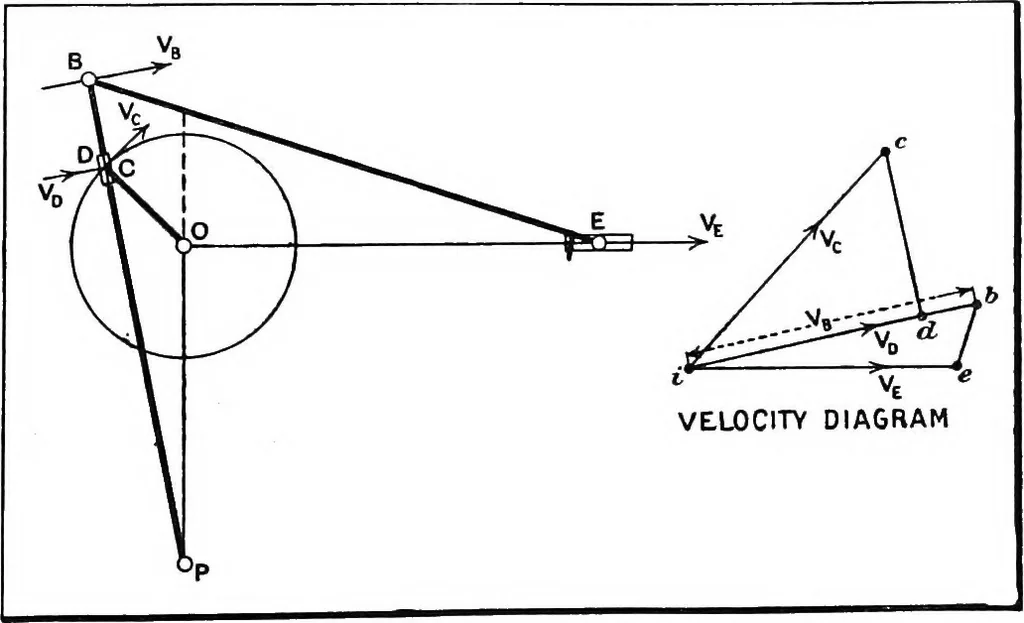

Fig. 60.—Quick-return Mechanism. which is radially adjustable to vary the stroke of the tool.This pin engages a slotted link H, which is pivoted by a pin … Fig. 61.—Velocity Diagram of Quick-return Motion. P to the carriage, and carries pivoted thereto at its upper enda connecting-rod K, which is pivoted to the tool-carryingram L. The effect of this mechanism is to give a compara- 108 GRAPHIC DYNAMICS tively slow movement to the tool for its cutting…
Mechanics, Applied · Dynamics · Graphic methods
