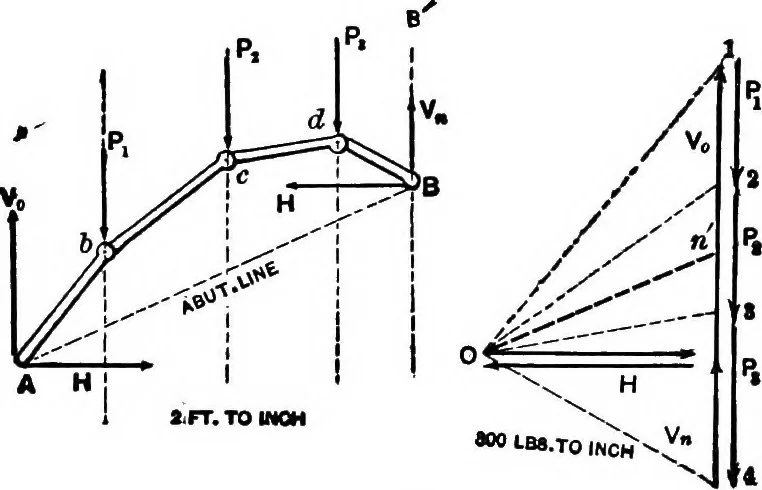

ring the given loads is noishown, but simply the imaginary rods, or segments of anequilibrium polygon, which would support the given loadsin equilibrium if the abutment points A and B, to whichthe terminal rods are hinged, were firm. In the presentcase this equilibrium is unstable since the rods… … Fia. 366. Grren three loads Pi, P^, and P,, and two abutmentverticals A and B, in which we desire the equil. poly-gon to terminate, lay off as a load-line, to scale, P,, P,,and Pg end to end in their order. Then selecting any pole, 414 MECHANICS OP ENGINEERING. 0, draw the rays 01, 02, etc., of a…
