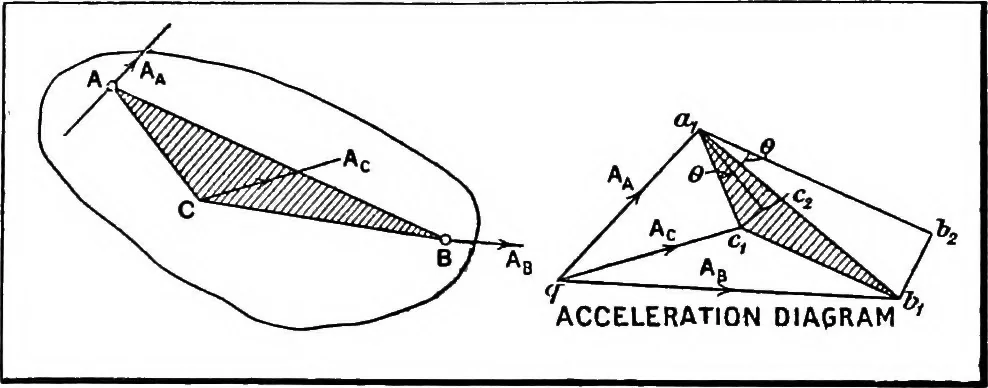

ll be given by ^, wMch will 112 GRAPHIC DYNAMICS be equal to —, the difEerence between — and — being negligible; the magnitude acceleration, i.e. the component ofthe acceleration acting in the direction of V, will be given Accelerations of Points upon a Rigid Member orLink.—Suppose that A and B are… … Fig. 64.—Acceleration Diagrams of Points upon a Rigid Member. respective accelerations, and join a-^, h^. Then a^^h^ repre-sents the relative acceleration of A and B. But we have shown that the relative velocity of B to Amust be at right angles to AB, i.e. it must be a rotationof B about A. The…
