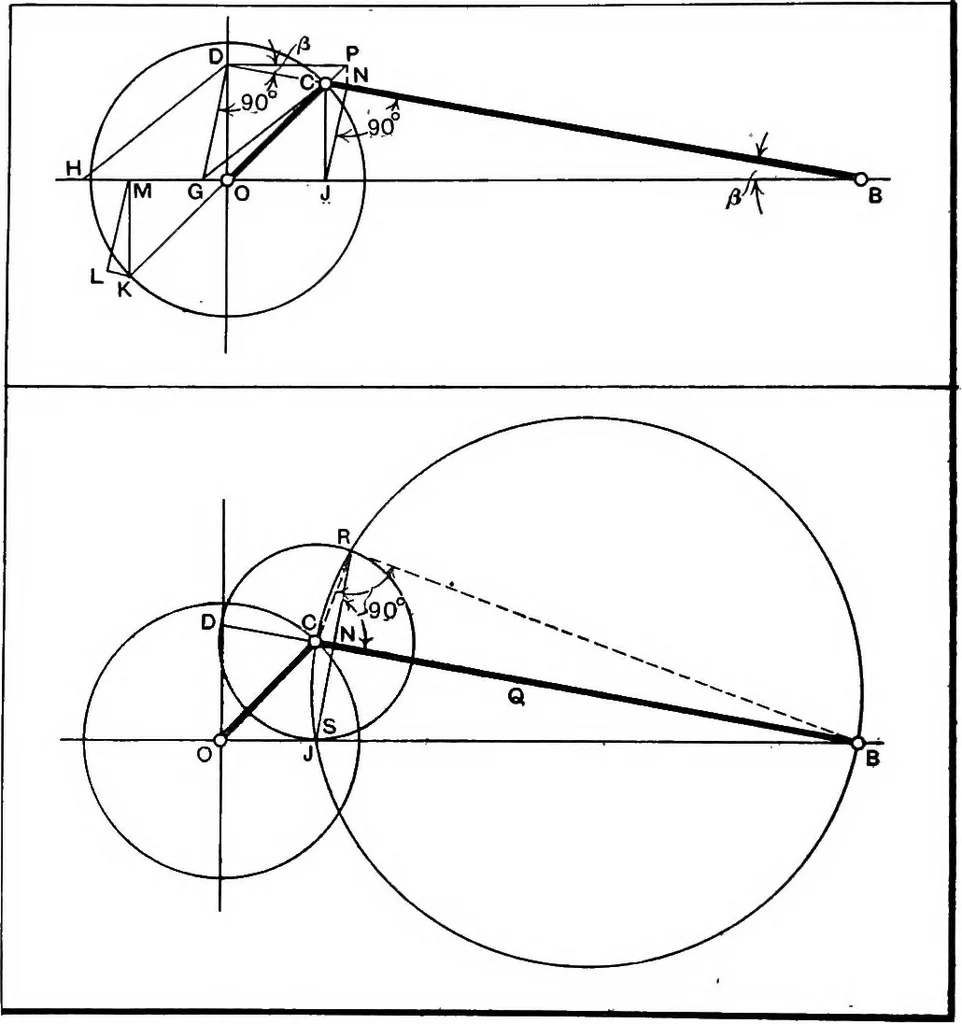

he point B is givenby (GH—GO)4ir2N2, the lengths being measured on thespace scale. We will prove this later. Elliott or Mohr Construction.—This construction wasgiven by Prof. Elliott in an interesting article in Engineer-ing, vol. Ixiii., p. 665, and was independently given by Prof. 120 GRAPHIC… … Fig. 67.—Rittershaus and Elliott or Mohr Construction (upperdiagram); Klein or Kisch Construction (lower diagram). Then AB = 4,r2N2 0J. To prove this construction we note that the trianglesDCP and COB are similar. CDCPCB~CO (9) VELOCITIES AND ACCELERATIONS 121 The triangles CPN and COD are also…
