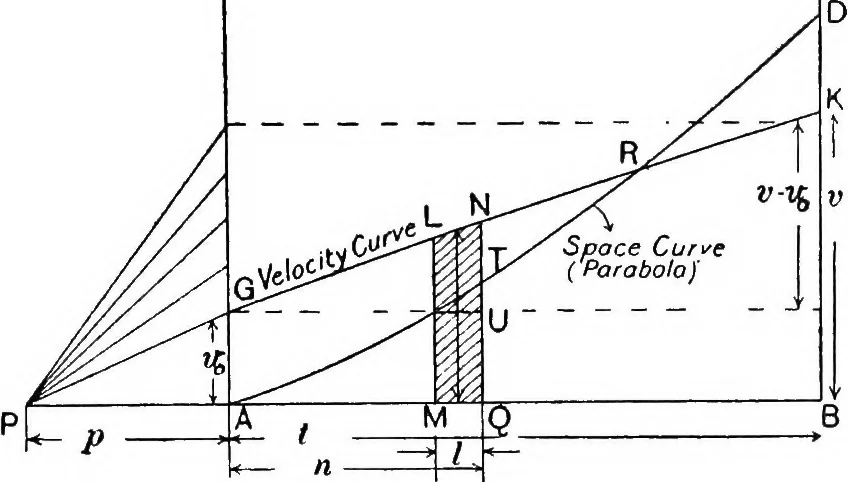

e of t the space s is equal to v t, the spacecurve is a straight line such that tan D A B = - = v. t (6) Velocity Increasing Uniformly.—If the velocity increases SPACE, VELOCITY, AND ACCELERATION 23 by the same amount in each unit of time, we shall obtainfor our velocity curve a sloping straight… … Fig. 14.—Velocity Increasing Uniformly. We shall see later that it is sometimes more convenient towrite this « = 2 K + («ol+ 0 - %)) = «;„« + (v — Vq) t (3) (c) Velocity Decreasing Uniformly.—la this case the velocitycurve GK, Fig. 15, will also be a straight line, but will slopedownwards. The…
