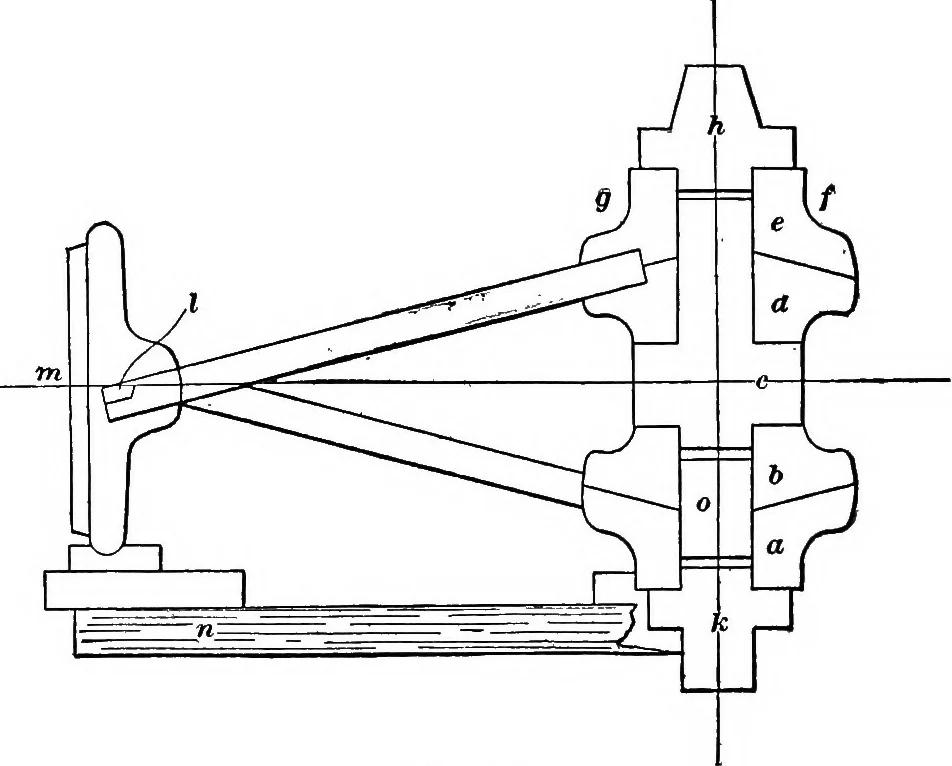

etting into some permanent form. Get the stuff for thehub out as follows: a, b, d, e to have the grain running from 20s 206 PATTERNMAKING. / to g; c to have the grain running from h to k, and longenough to r.each through the whole hub as shown. Turnc with a pin on each end, then turn the other… … Fig. 93. c and d together, and then putting the other parts of hubtogether by means of the pins on c, lay out the holes forarms and work them nearly to the size; also lay out andcut the arms into rims, taking care to get every one in lineat the point where they enter rim, and slanted up and…
