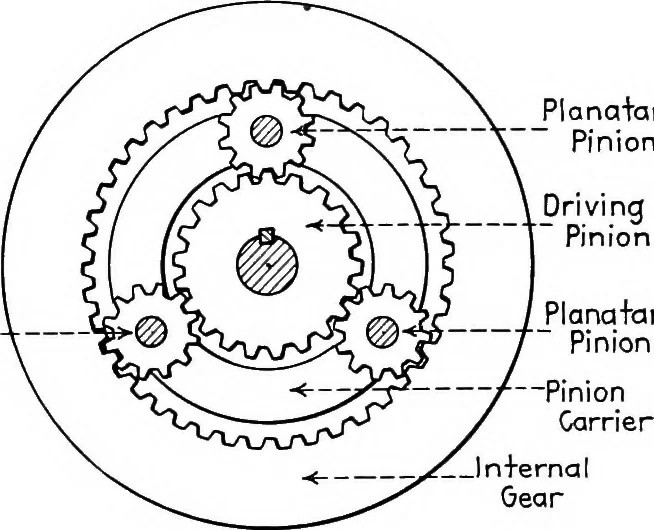

he planetary pinions are mounted upon shafts attachedto the pinion carrier which has a bearing on the drivingshaft and which may be a disc, spider or drum. It willbe seen in the illustration that the driving pinion willdrive the internal gear through the planetary pinions. Ifthe internal gear is… … Plana taryPinion Fig. 16—Planetary Gearing in which the driving shaft is revolving, but at a lowerspeed. With the pinion carrier in driving connection withthe driven shaft, the vehicle will then move forward on lowspeed. Reverse gear is obtained by holding the pinion carrierfrom revolving,…
