Mechanics of engineering (solids) : comprising statics and kinetics of solids, and the mechanics of the materials of construction, or strength and elasticity of beams, columns, shafts, arches, etc. : for use in technical schools (1911)
Church, Irving P. (Irving Porter), 1851-1931 · New York : Wiley ; London : Chapman & Hall · leaf 506

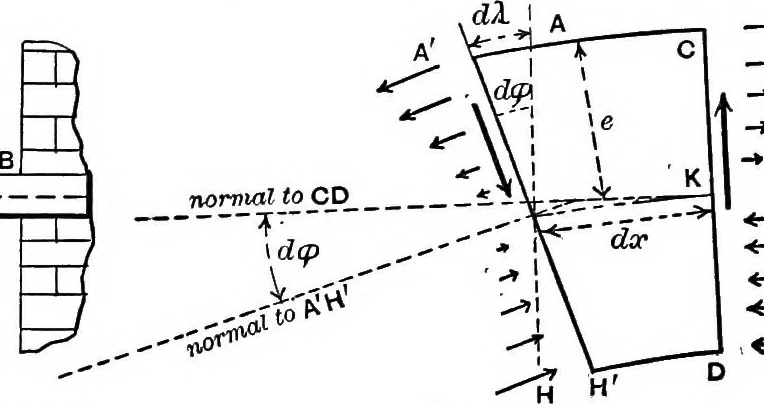

thegraphic ideas involved greatly simplify the algebraic detail offinding deflections, angles, moments, shears, etc., in the case ofhorizontal beams originally straight and slightly bent undervertical loads and reactions. In the case of continuousbeams , or girders , (p. 320), this mode of… … fs^ Fig. 443a. Fig. 4435. straight) be loaded as shown, and the beam thus slightly bent,the two cross-sections, AH and OD, at the two ends of any dxof the axis of beam, are no longer parallel but become in-clined at a small angle d<f> which is also the angle between thenormals to these…
Mechanics, Applied · Strength of materials
Internet Archive · Cornell University Library · Public Domain Mark 1.0. Free to use for anything.
