A practical course in wooden boat and ship building, the fundamental principles and practical methods described in detail, especially written for carpenters and other woodworkers who desire to engage in boat or ship building, and as a textbook for schools (1918)

Van Gaasbeek, Richard Montgomery, 1877- · Chicago, F. J. Drake & company · leaf 103

An illustration from A practical course in wooden boat and ship building, the fundamental principles and practical methods described in detail, especially written for carpenters and other woodworkers who desire to engage in boat or ship building, and as a textbook for schools, 1918, leaf 103

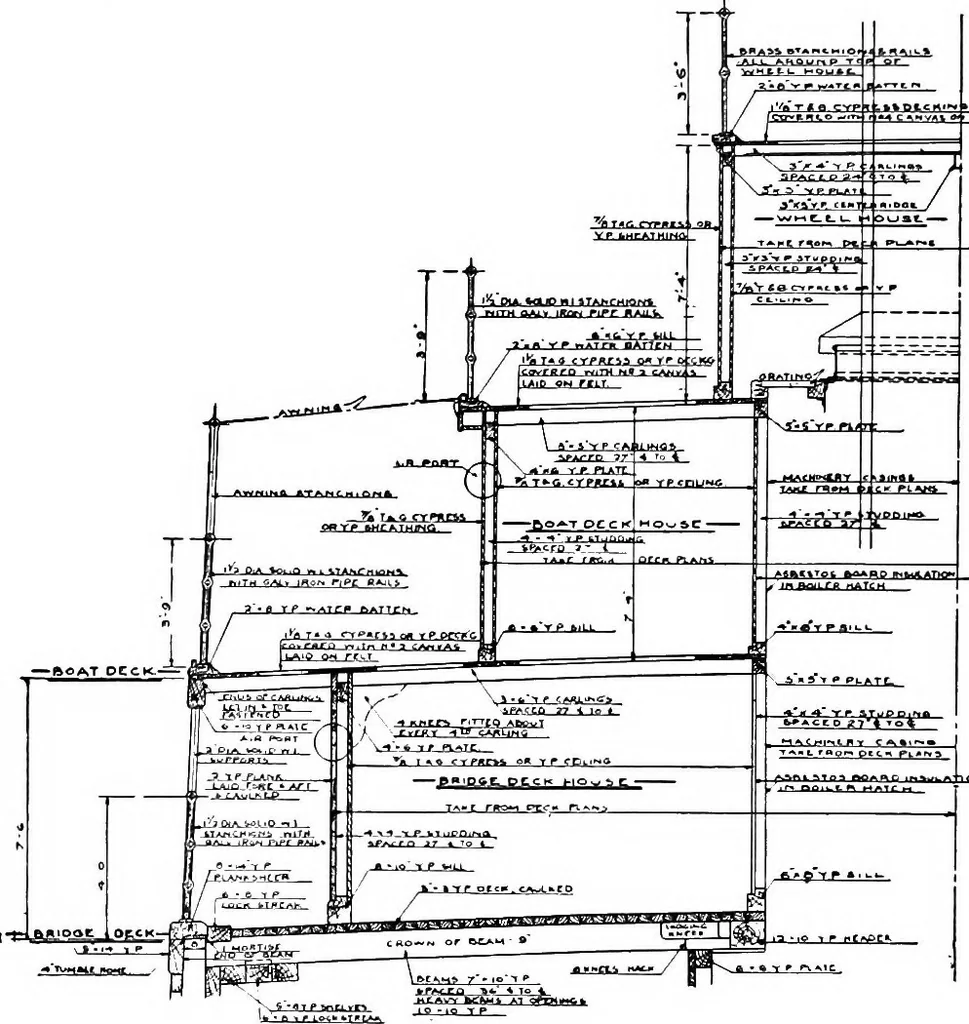

.^c or Tf °;:,;a-? Standard Wooden Steamship. 100 COURSE IN WOODEN BOAT AND SHIP BUILDING given to the mill superintendent, and from themhe lays out his parts. —ftOAT DEC … Figure 48.—Section from Bridge Deck to Top of Wheelhouse ofStandard Wooden Steamship. FRAMES The frames are double saAved, spaced 36 centerto center, separated at the butts with 2-inch chocks,and each butt fastened with II/4 treenail. The frames are laid out from the moulds, as SHIP CONSTRUCTION 101
