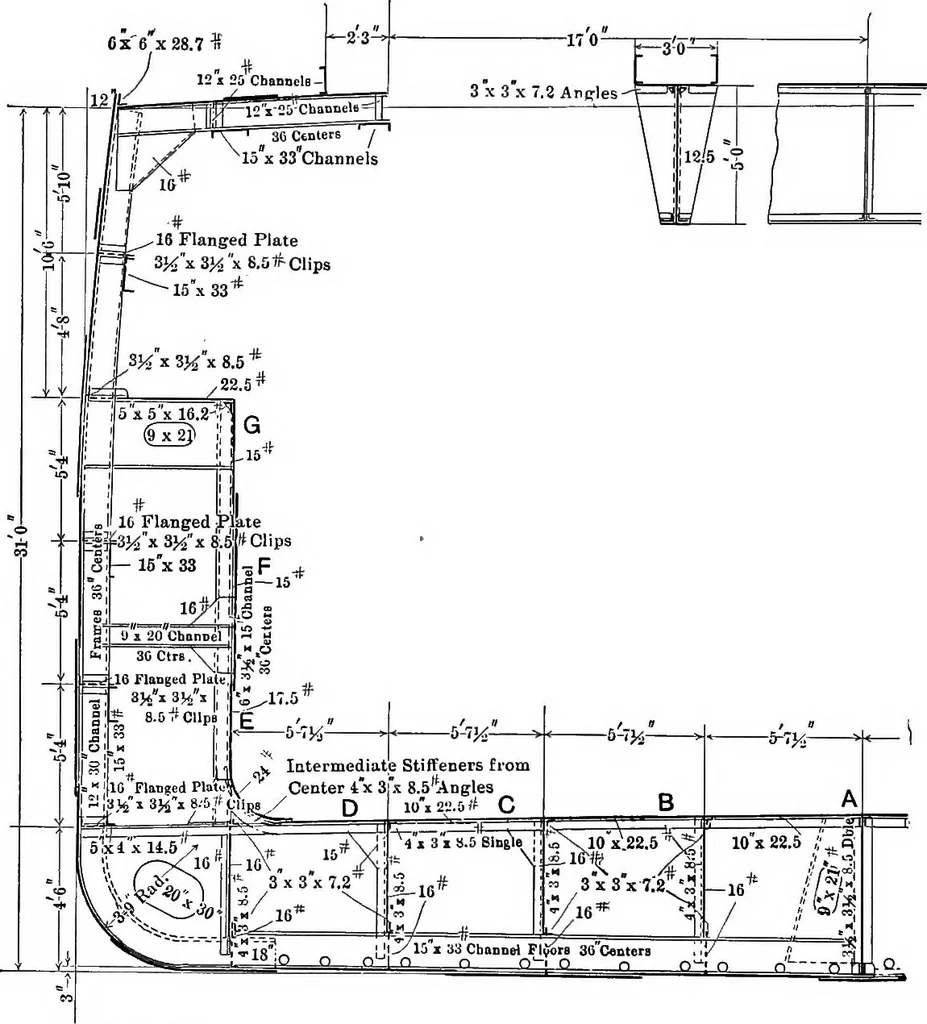

a factor in the British method of framing ships. It is com-posed of a pine platform planed smooth and painted black with lampblack. The lines of the body plan are transferred from the mold loft LAKE SHIP YARD METHODS OF and scratched in on this platform so that the various lines may not berubbed… … MARINE REVIEW Fig. 1. Figs. 1 and 2 are scratched in and painted with different colors ofpaint, the framing squad takes possession of the board. Long stripsof pine 1 in. by J4 in. are bent around the frame lines and the plate STEEL SHIP CONSTRUCTION edges marked on same or any parts which may be…
