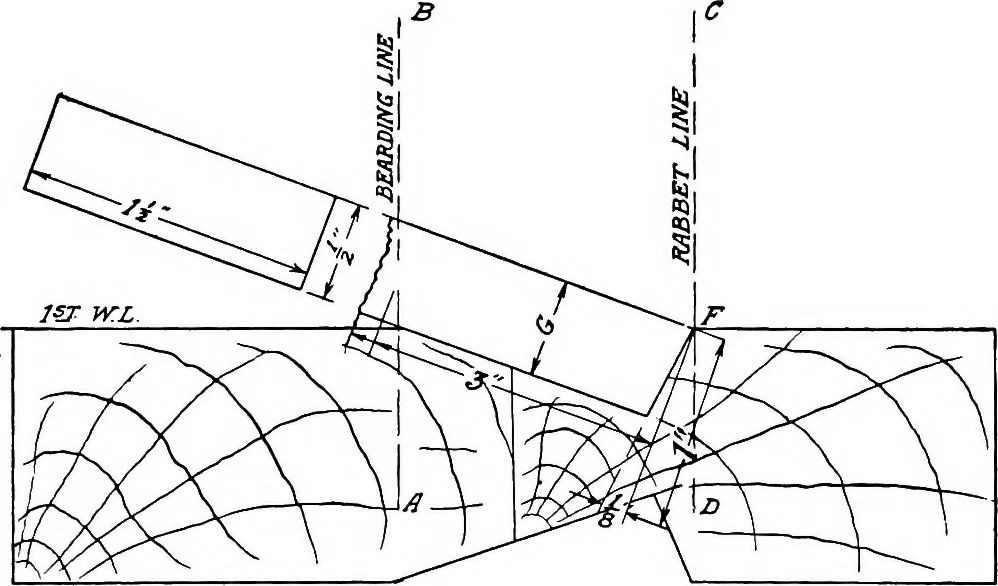

s STEM AND STERN CONSTRUCTION 37 transferred from the moulds to the stem and stern,and the rabbet is cut in with a chisel. A section through the stem is shown in Figure12 and a full-size detail of the rabbet is shown inFigure 13, the line A-B, Figure 13, representingthe bearding line, and the line… … Figure 13.—Detail of Rabbet. (Section Through A-A, Figure 12.) formed by the intersection of the bearding, rabbet,and first water lines. Make a template or mould the thickness of theplanking, as shown at G, about l^o wide and 3long, depending upon the size of the rabbet to becut. Bevel one end as…
