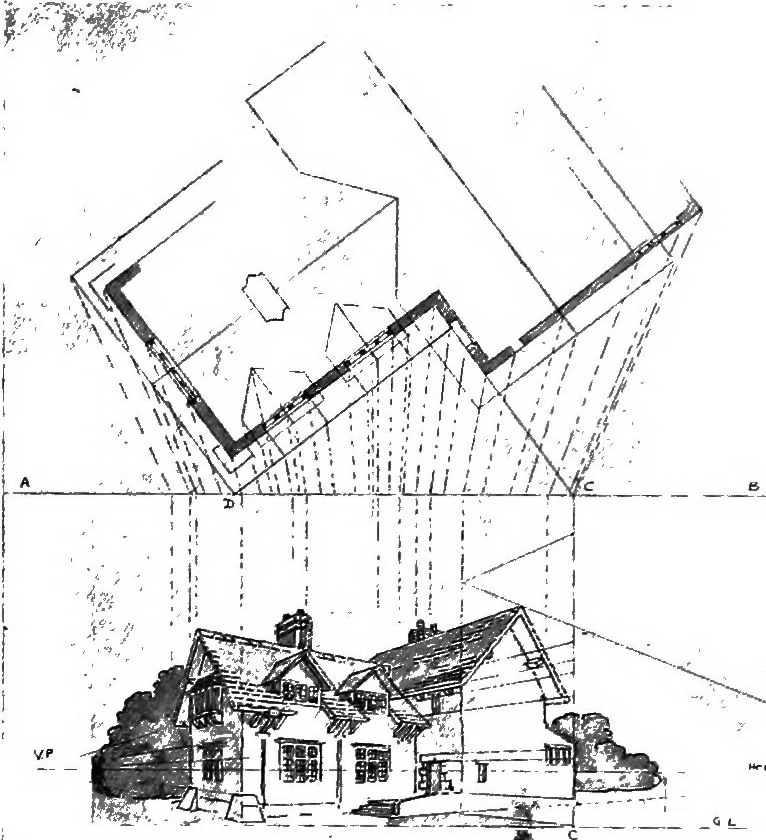

f the house is placedagainst AB depends upon the choice of the draughtsman,who determines which view of the building will best suithis requirements. The position of the plan against ABcorresponds with the angles drawn from eye 2, or rather,the angles from eye 2 are drawn parallel to the sides ofthe… … u 1 I JI ^y/ /■ rx II ffijO j^ ik llfTif 1=*!! Ti =^.-1. nD]\ Fm. 46.—Arctifects perspective. laterally, the dimensions are dropped vertically down,across the perspectiye drawing till they cut the linesvanishing to one of the V.P.s on the horizon 70 Perspective The method is a mixture of the…
