Hatton, Richard G · London, Chapman & Hall ld. · leaf 221

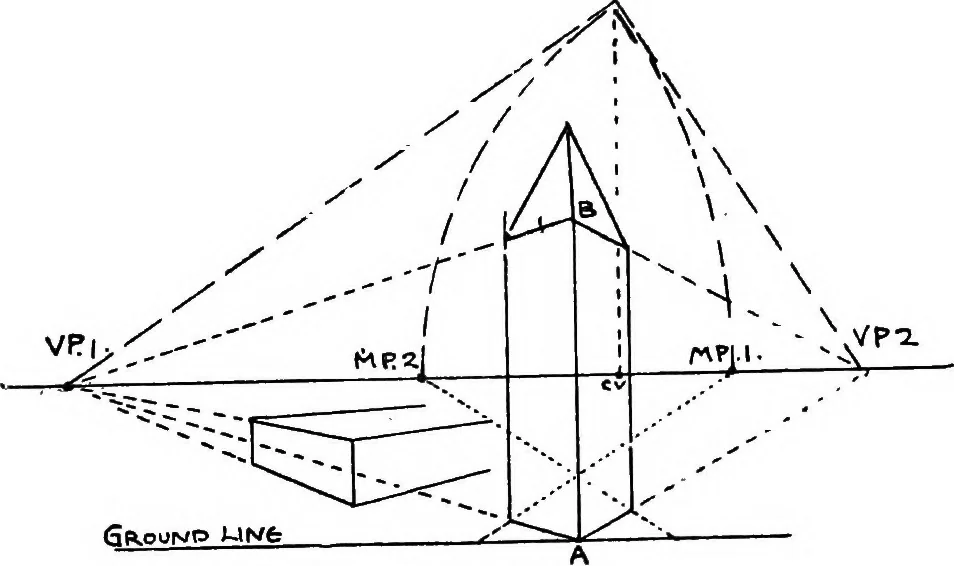

a towerprecisely similar to the one shown above A. It is to bethe same in its dimensions, yet, being evidently furtheraway, we must expect diminution of size on the drawing. EY6. … Fig. 138. Then it is to stand on a higher level, so we must expectit to reach higher up the paper. Lastly, its sides are tobe inclined to the picture at the same angles as the toweralready given. Its horizontal lines will therefore vanishto the same V.P.s as do those of the former tower, and…
Perspective · Drawing
