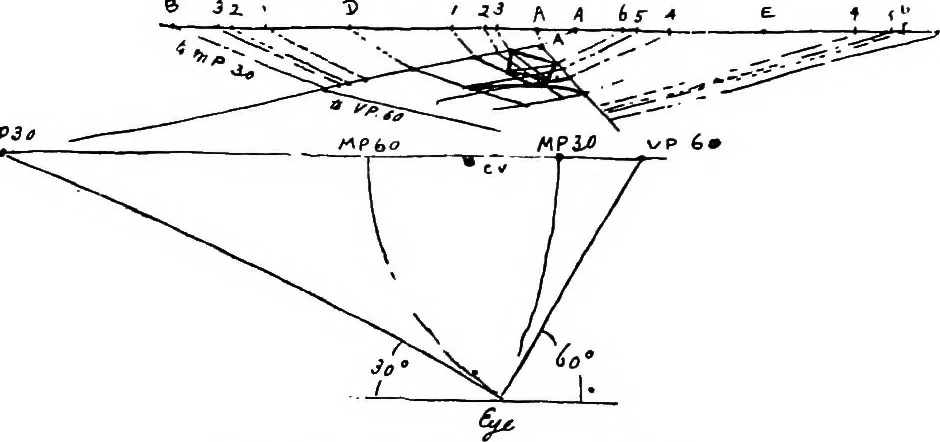

as thus several lettered orfigured points on each side. Thus AB has D in thecentre, and between D and A points 1, 2, and 3, andbetween D and B also points 1, 2, and 3. The dimen-sions on the other sides are the same as those onside AB. To work the problem, we draw from A a line to V.P. 30on left,… … Fio. 177.—Sketch of the working. picture-line toward the left, we set off points 3, 2, 1, D,1, 2, 3, B, transferring the dimensions from the plan.We then draw lines from all these points to M.P. 30, andnote where they cut the line from A to V.P. 30. We thushave the side AB with all its measurements…
