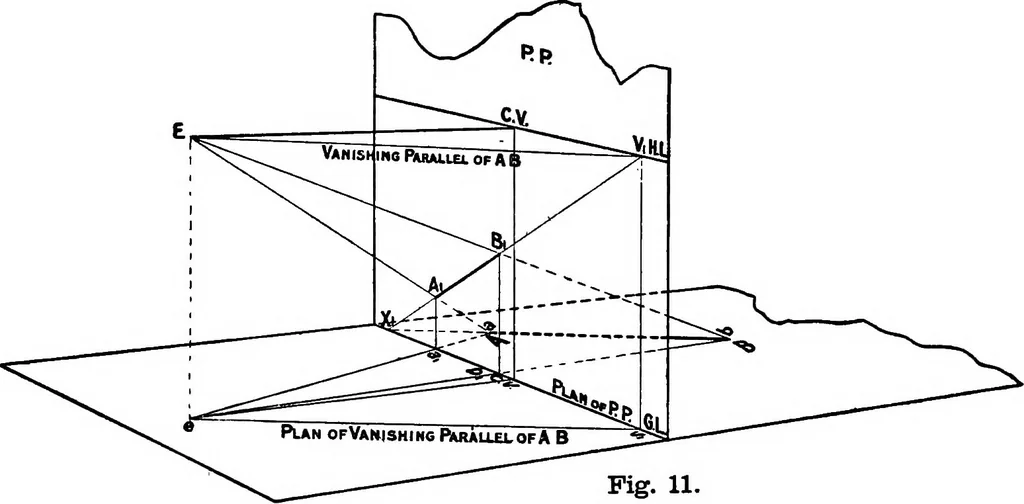

resentations have been shown on the P.P. as they would have appeared whenworking by means of that model. It would be very inconvenient to construct a model for the purpose of giving anyrequired perspective representation; but by the geometrical treatment of the objects,planes, &e., a… … Fig. 11. 10. In fig. 11 E is the eye, P.P. the picture plane, H.L. the horizontal line,C.V. the centre of vision, E Vj the vanishing parallel of A B, G.L. the ground line,and A B a line lying on the ground. The perspective representation of A B is AjBi, which has been obtained byfinding (by the use…
