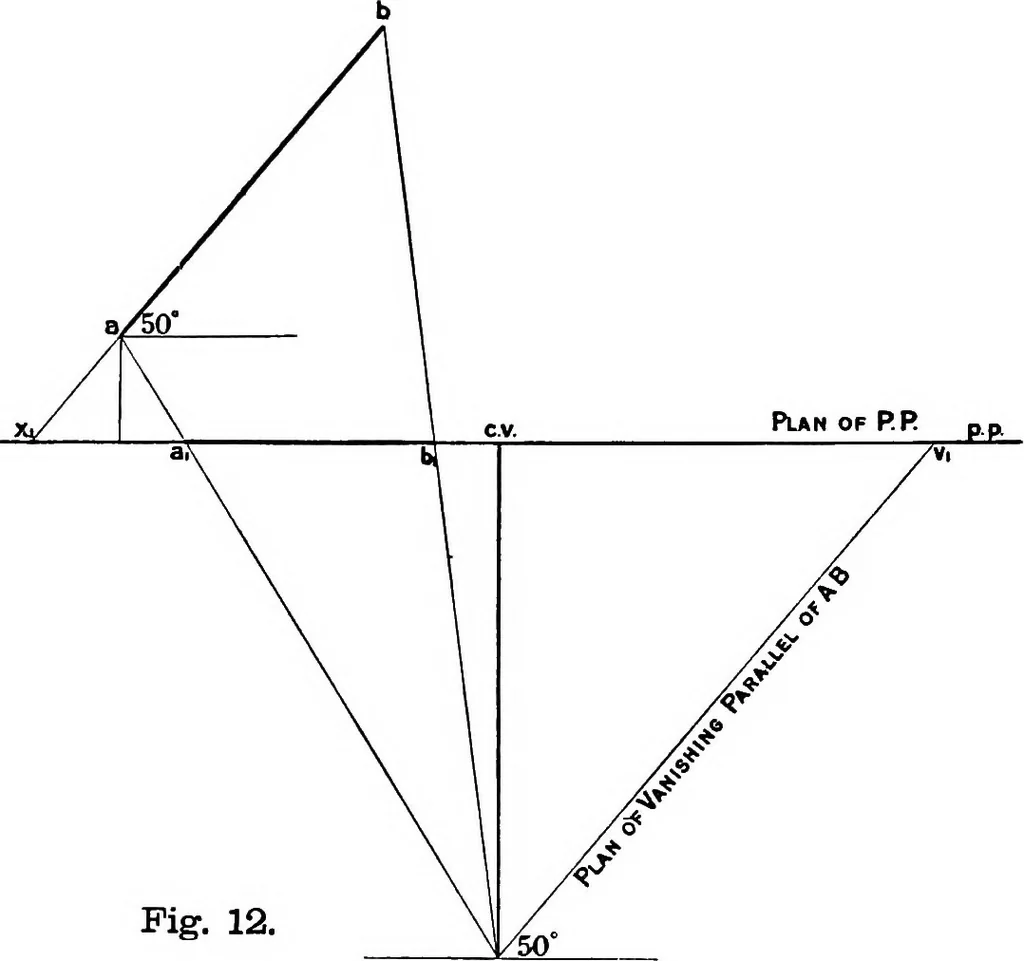

e plan of the P.P. It will now be evident that the plan of the perspective representation of any point is thepoint of intersection with the plan of the P. P. of the plan of the ray from the point to the eye. In every perspective problem data as to the position of the object must be given,because… … Fig. 12. Fig. 12 is the plan of fig. 11. Perspective problems are generally worked to scale; in fig. 12 the scale used is^ inch to 1 foot. In drawing this plan the eye has been assumed as situated 3 ft. 9 ins. in frontof the P.P.; point A as 2 ft. 9 ins. on the spectators left and 9 ins. beyond the…
