Applied perspective, for architects and painters (1901)
Longfellow, William Pitt Preble, 1836-1913 · Boston and New York, Houghton, Mifflin and company · leaf 70

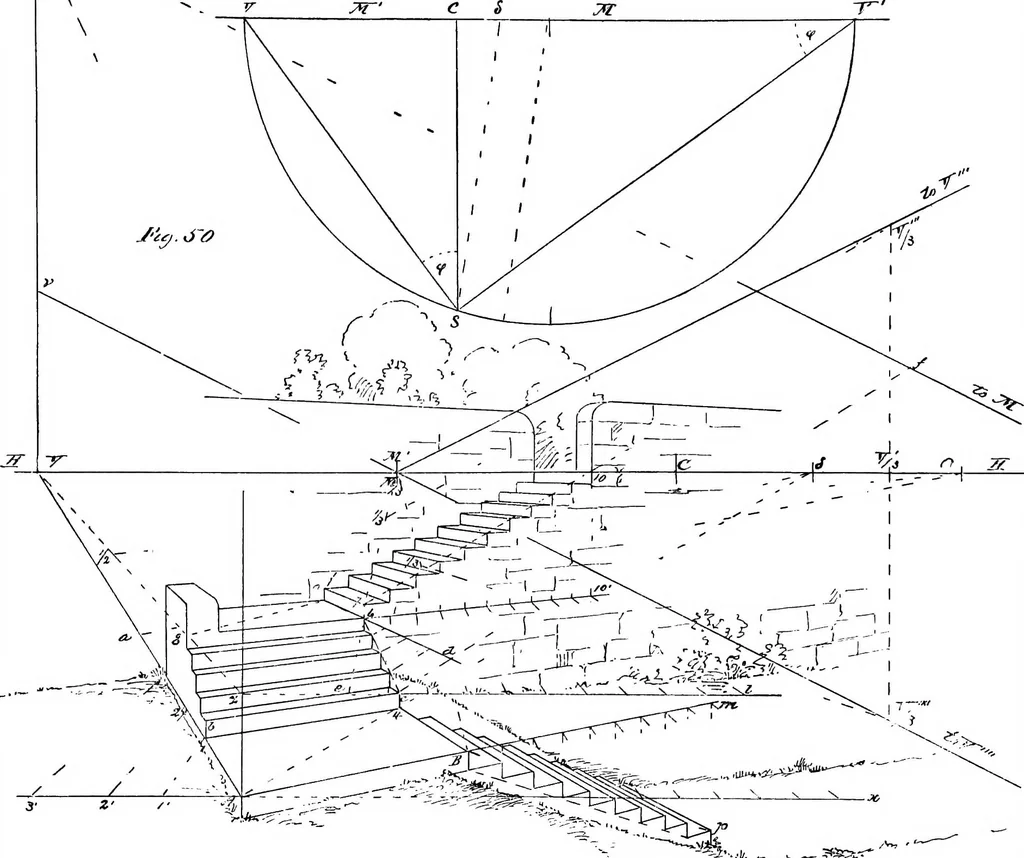

he same way we draw 6- V and g- V. These slope lines are so nearly parallelto their inclined horizon M V that to divide them in the ordinary way would betroublesome :1 it is better to divide the horizontal projection 8-6 prolonged, and projectthe divisions on y-V. There are ten steps to be measured… … ■-^■..■K^.^^->^>^ ~4jcc J^l^cZe. J£
Perspective
