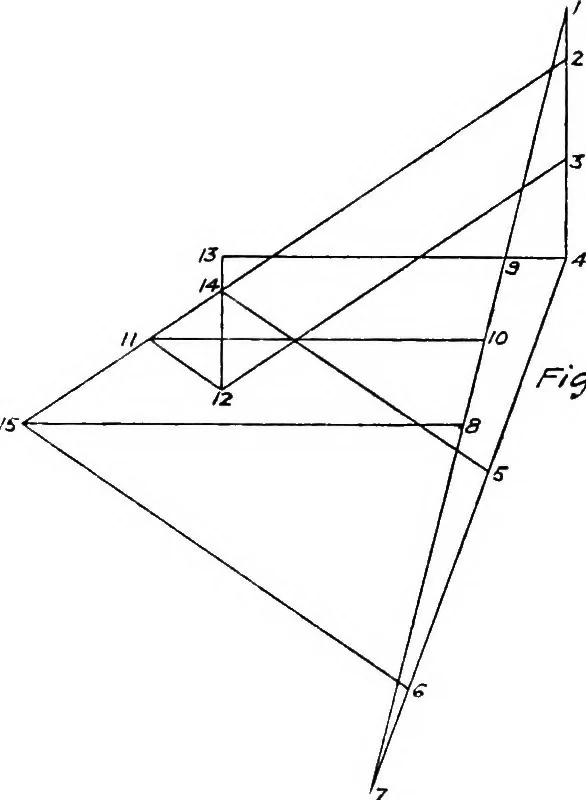

he virtual forces 8—9 92 THE MECHANICS OF BUILDING CONSTRUCTION and 9—10, which counteract the downward and upward thrusts of thequeen-posts. The vertical components of these two forces will producea bending moment on the tie-beam calculated as follows. The virtualforce 8—9 wiU produce a negative… … r/^. 307 as shown by the triangle ADC. Subtracting the positive from thenegative bending moment leaves the triangle DBC as a negative + 35 art.
