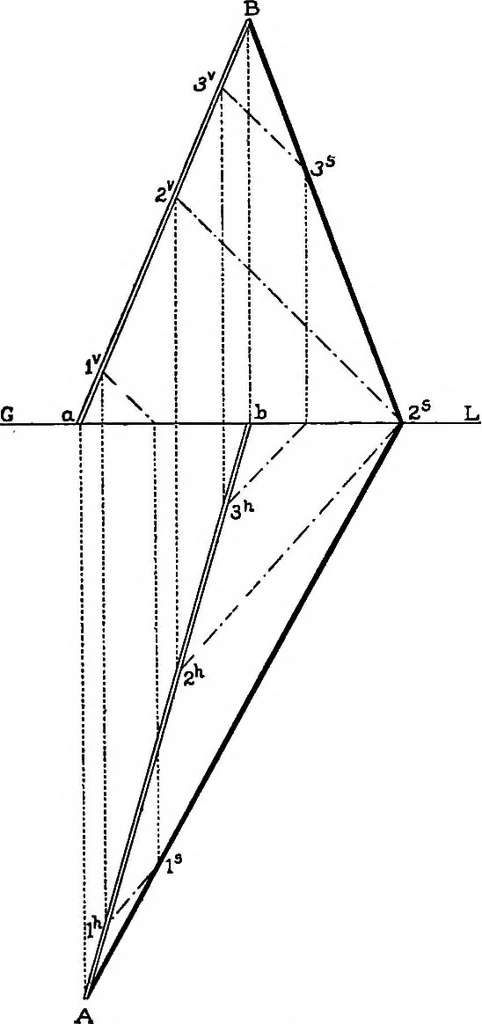

he Suns rays, are drawn asbroken lines; and their projections upon the horizontal and vertical planes ofprojection are shown by dotted lines. The construction lines are also dotted. 16 Fig 9 B shows all these things by the methods of Orthographic Projection, giving the projections, onbothplanes of… … Fig. 9 B S ■• .V 28 SHADES AND SHADOWS Geometry, from their projections. If these Hnes terminate in the horizontal plane, their projections uponthe vertical plane terminate in the Ground Line; so also, if they terminate in.the vertical plane, their pro-jections upon the horizontal plane terminate…
