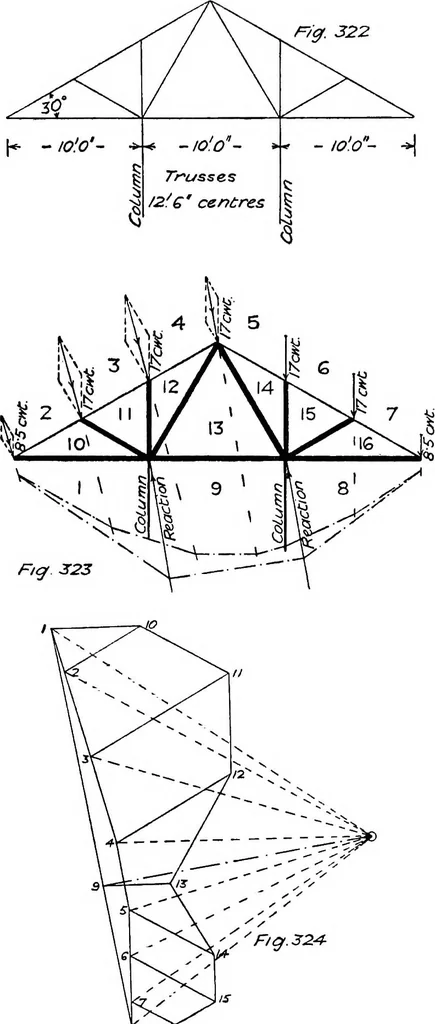

at the leeward support. Span 30 feet, slope 30 degrees, trusses 10 feet centres,total structural load 6 tons-, horizontal wind pressure 30 lbs. per ft. sup. Draw EXAMPLES FOE PRACTICE 97 frame, stieBS, and bending moment diagrams. Scales 8 it. to 1 in,, \ in. to1000 lbs., J in. to 1000 Ib.-ft. For… … a « H 98 THE MECHANICS OF BUILDING CONSTRUCTION (Note.—Order of working as follows:—Set down the load line 1 to 8, then2—13, 7—13; 13—11 horizontal; 4—16, 5—16; 16—10 horizontal; 13—14,3—14; 14—15, 16—15 ; 15—17, 6—17; and 17—18, 7—18.) Q. ■ 57. Pig. 322 shows roof truss for an island platform at a…
