Martin, Louis Adolphe, 1880- · New York, J.Wiley & Sons, Inc.: [etc. etc.] · leaf 82

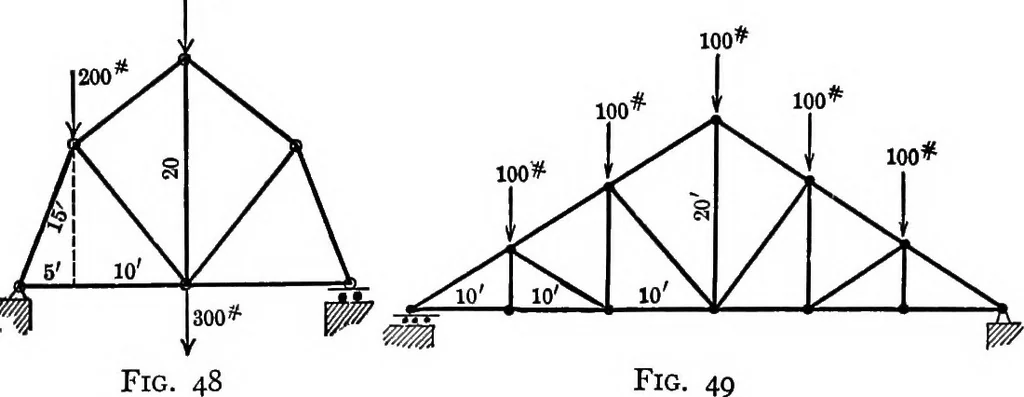

nsider member 36. Its namein connection with pin 16321 is e^. In the stressdiagram ^3 indicates a force acting towards the right;thus member 63 pulls the pin 1^3 21 towards the rightor the member must be in tension. Exercise 84. Sketch the stress diagram for the frameshown in Fig. 46 assuming loads… … Fig. 49 frame diagram and draw its stress diagram. Indicate ten-sion and compression in the members with -|- and — signsrespectively. Exercise 86. Check the results of Ex. 80 by means ofa stress diagram. Exercise 87. Check Ex. 81 by means of a stress diagram. 66 APPLIED STATICS Exercise 88. Find…
Mechanics
Internet Archive · Cornell University Library · Public Domain Mark 1.0. Free to use for anything.
