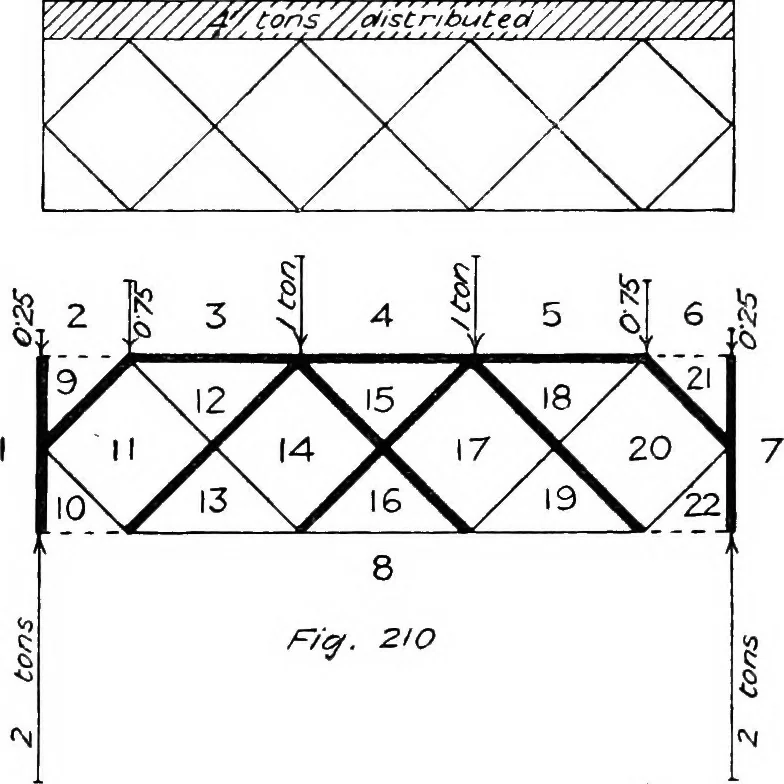

diagram may be made for each load. Y/////////4A /vg. 209 … 62 THE MECHANICS OF BUILDING CONSTEUCTION uniformly distributed load on the top flange; Fig. 210 is the framediagram for this, and Fig. 211 is the corresponding stress diagram.The frame diagram is utilised to show the nature of the stresses, thinlines for tension, thick for compression, anddotted…
