Martin, Louis Adolphe, 1880- · New York, J.Wiley & Sons, Inc.: [etc. etc.] · leaf 200

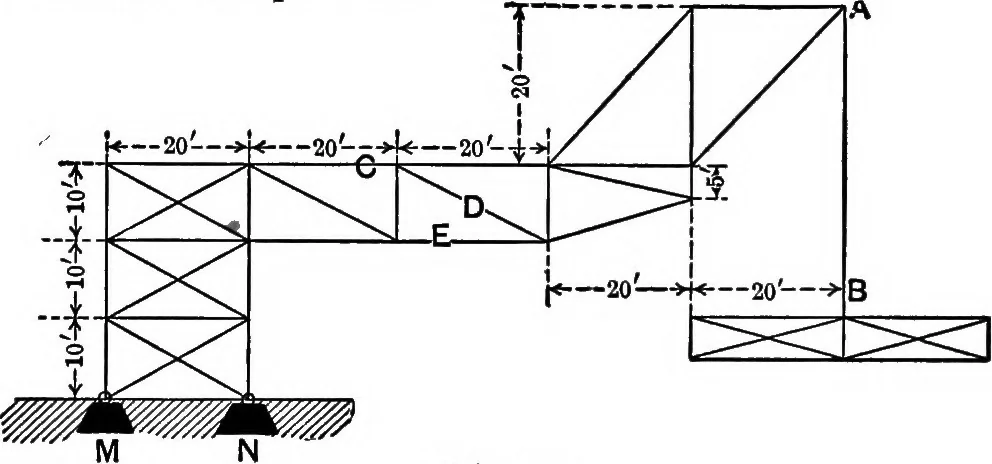

PROBLEMS FOR REVIEW 183 (b) the reactions at the abutments M and iV, due to this load. 282. Sketch enough of the stress diagram for the frameillustrated in Fig. 133 to determine the stresses in the membersmarked D and E, State whether the members D and E arein tension or compression. r … Fig. 133 283. In hemp or cotton rope-drives the greatest workingstress is 140 pounds per square inch and the tension on thetight side of the rope is usually considered to be four timesthe tension on the slack side. (a) What is the effective force, useful in transmittingenergy, in a rope having a…
Mechanics
