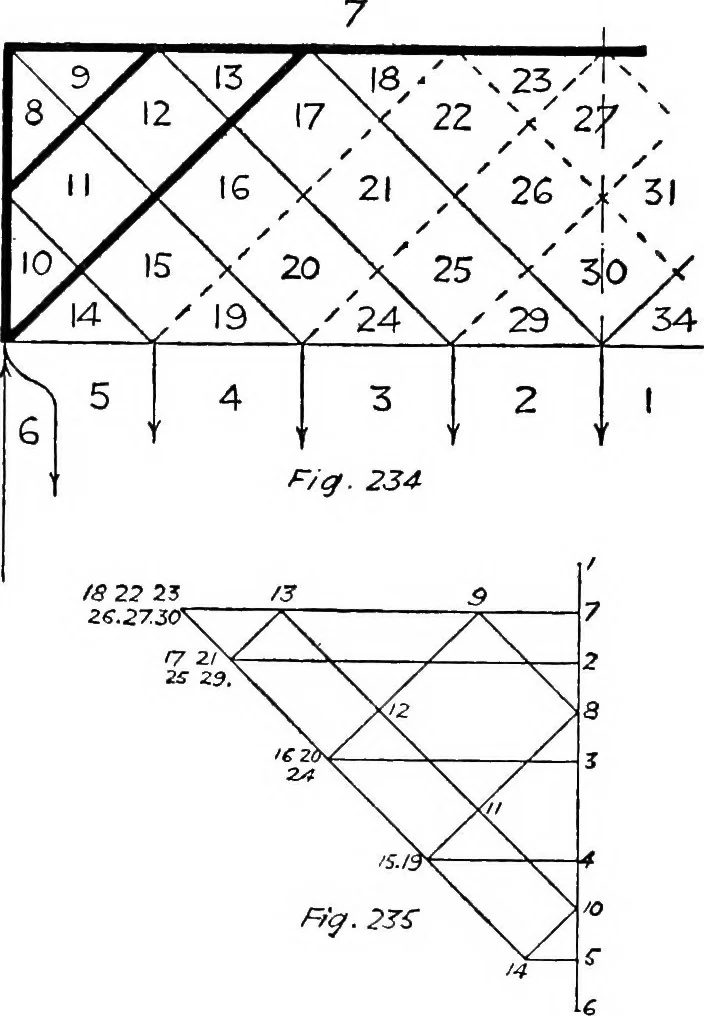

down 7—8 is equalto 3—4, being a part of 3—4 and part of the similar load at the otherend of girder ; and the load passing down 7—10 is that coming from7—8 + 2—3 + 4—5. No difficulty will then be found in drawing thestress diagram Fig. 235. Compound trussed girders, such as the Linville,… … struction, p. 79, to say, Braced girders are called Linville, Pratt,Murphy and Whipple-Murphy according to variations not easilydefined. An elementary case of the latter type may be taken as inFig. 236, which is loaded on the bottom flange. This may be dividedup into three component girders which…
