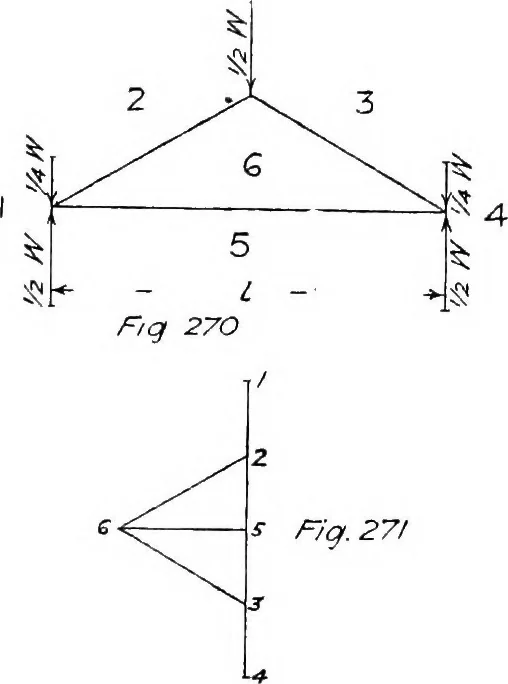

s of roof trusses and elementary illustra-tions are so numerous in the various text books that only a few specialcases need claim attention in this course. First draw a simple truss, Fig. 270, and determine the stresses byreciprocal diagram, Fig. 271. Then take the same truss and load andfind the…
