Radford's portfolio of details of building construction; a remarkable and unique collection of full-page plates, accurately drawn and reproduced to exact scale. Complete details for every style of interior trim, including special built-in features (1911)
Radford, William A., 1865- ed, Johnson, Bernard L., joint ed, Rawson, Charles P., joint ed · Chicago, Ill., The Radford Architectural Company · leaf 191

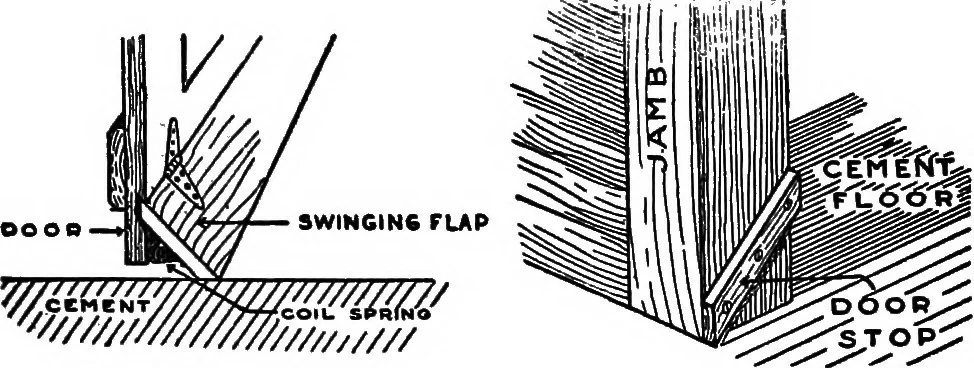

PLATE 176—DETAILS OP ROOF CONSTRUCTION Approved construction at the fire wall joint for tar and gravel flat roofs. The arrangements are ranging from the low-cost to the most expensive. detailed, 188 J,,-;-. ,,,| IJ … SNOW-PROOF GARAGE DOOR To make the wide swinging doors for garagessnow-proof, the door is rabbeted out about twoinches from the bottom to receive a swinging flapwhich is held tightly down, when the door isclosed, by strips nailed to each jamb; when thedoor is opened the coil springs behind the…
