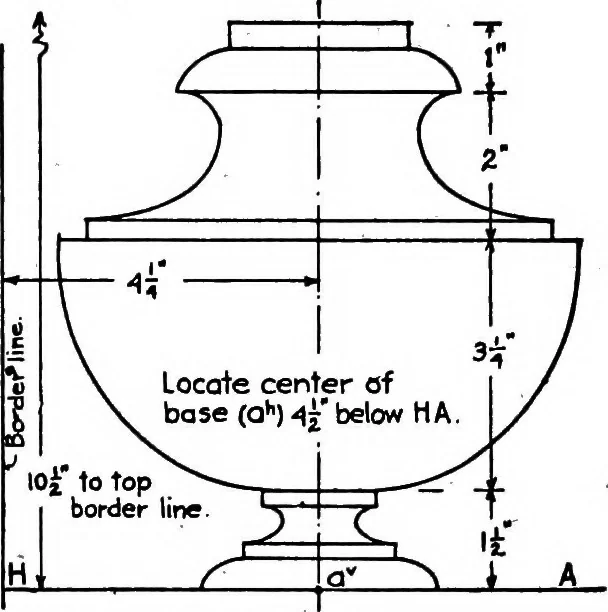

T^^ 4H^ L Fig. 270 308 DESCRIPTIVE GEOMETRY EXERCISE SHEET CXI (§216) Determine the shade line and shadow, also the shadow on H, forthe double-curved surface in Fig. 271. Use a point source of light onthe left border line, llj above H and 9i in front of V. … Fig. 271 EXERCISE SHEET CXH !216) With the siin as the source of light, determine the shade line andshadows, also the shadows on H and V, for the doublercurved surfacein Fig. 272.
