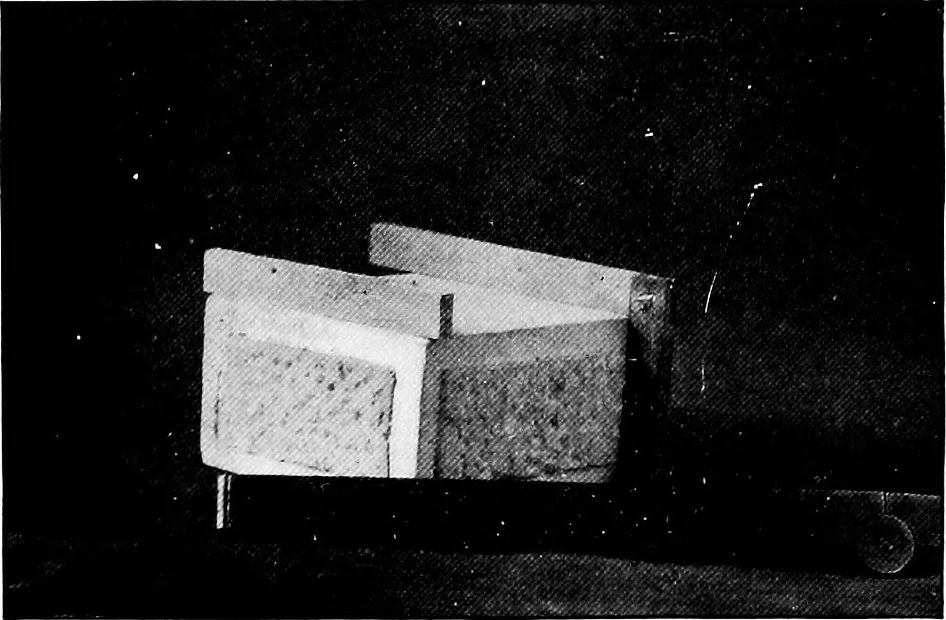

Surfaces, either concave or convex, may beformed in a way similar to that employed for plane surfaces, exceptthat, in place of the parallel rules, two rules may be used, each of 26 STEREOTOMY. which has one straight-edge, and the second edge of each cut tothe proper arc. A straight-edge connecting… … Fig. 32. between the drafts, testing with a template cut to the properradius. To work a plane surface from a cylindrical surface, or viceversa, an arch square in place of a bevel or simple square is used.The arch square has one arm of the square cut to fit the cylindri-cal surface, and the second…
