Simplified mechanical perspective for the use of ... schools (1909)
Frederick, Frank Forrest, 1866-1942 · Peoria, Ill., The Manual arts press · leaf 30

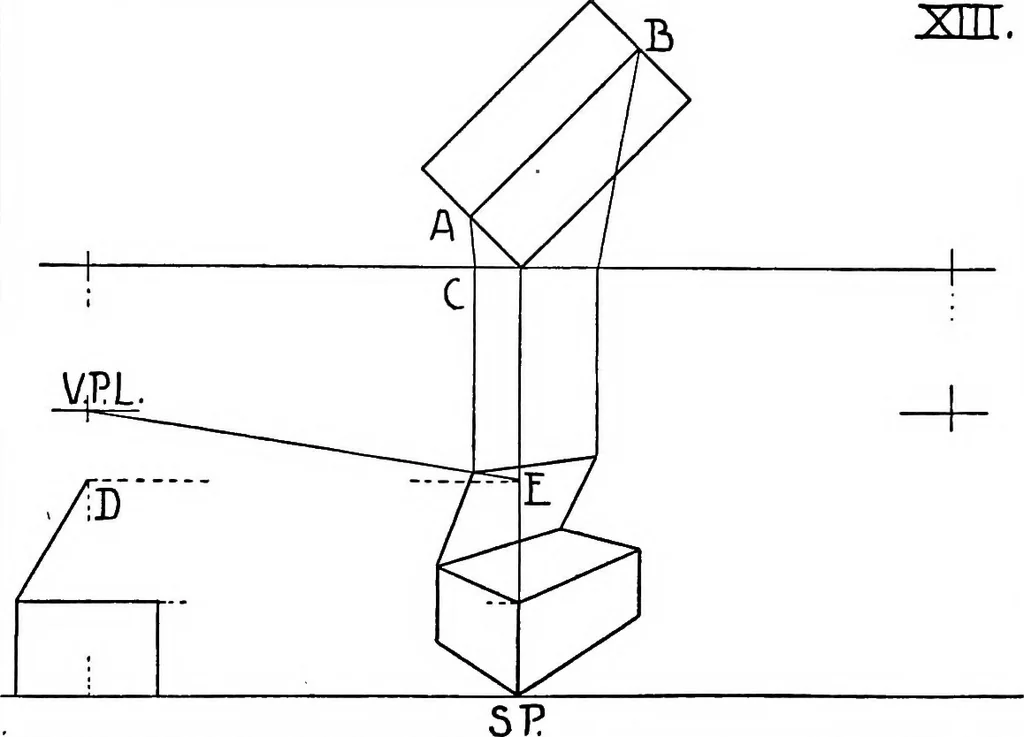

vertical plane includes the end of the box and the edgeof the cover as it opens. Any vertical distance in this plane must befirst set off on its intersection with the picture plane (as E—S. P.) andthen carried into perspective. This problem will have but a small part of its possible value… … 80, from the nearest corner of the trunk. The point on the floorunder the students eye becomes the S. P. The distance upon the floorfrom S. P. to the nearest corner of the trunk (C. V.) becomes the L.of D. The distance the eye is from the floor gives the distance H.must be placed above P. L.…
