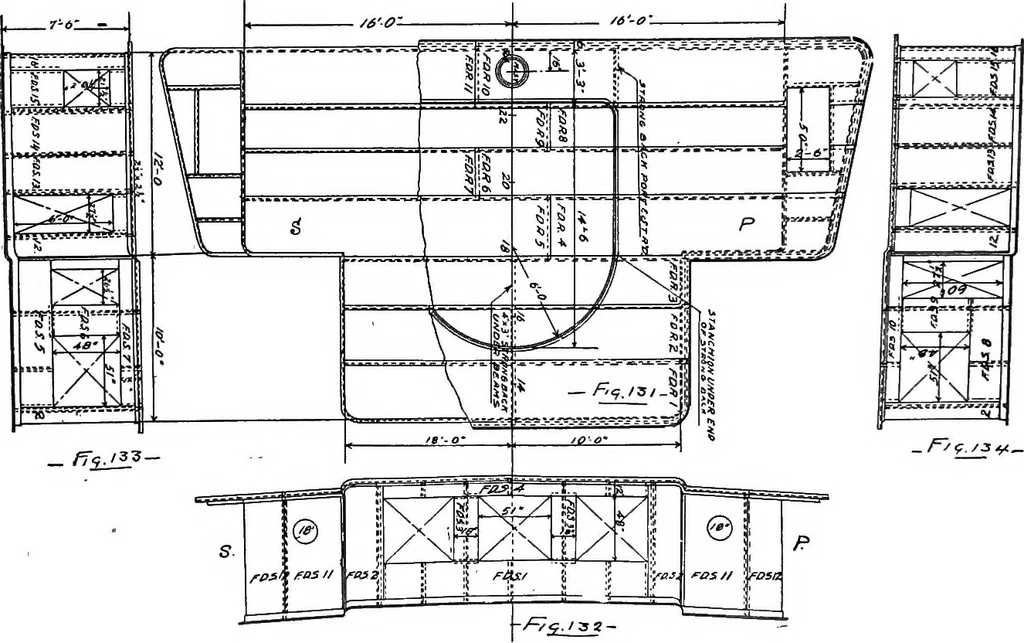

all the doors and butts of plates located on same. Fig. 124has no doors so that the whole side with the exception of the cornerplates, Nq. 4, would be templated in one piece, copying the plate buttson same and getting on a plumb line. Fig. 125 shows only one door; 122 LAKE SHIP YARD METHODS OF in… … EE tieni^ //«A«f M^t-t> ■ ct /y. iSy 92. 1£C &£Rfvt Mt,t.a /J-;*,;,. -/=7<^./3S from the templates, after which the plates are punched and erectedin place. The top angle is then put on binding the sides of house platingtogether which are up in place. The plates at the corners of the…
