Lake ship yard methods of steel ship construction (1907)
Curr, Robert · Cleveland : The Marine review · leaf 97

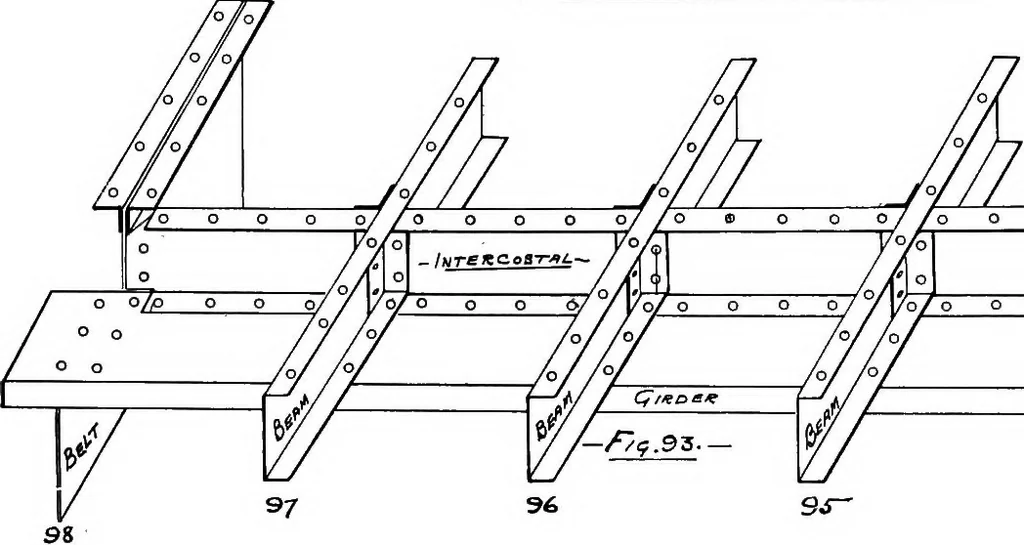

shows the butt riveting and is used throughout the shipwhere the plates remain the same width. G shows the mold for theintercostals and is applied to the heel of the beam as shown on Fig.94. Fig. 93 shows the arrangement of the girder on the vessel whichruns under the stringer plate as shown by FF… … OOP /o*
