Barrows, F. W. (Frank Wilson), b. 1853 · New York, N.W. Henley Pub. Co. · leaf 104

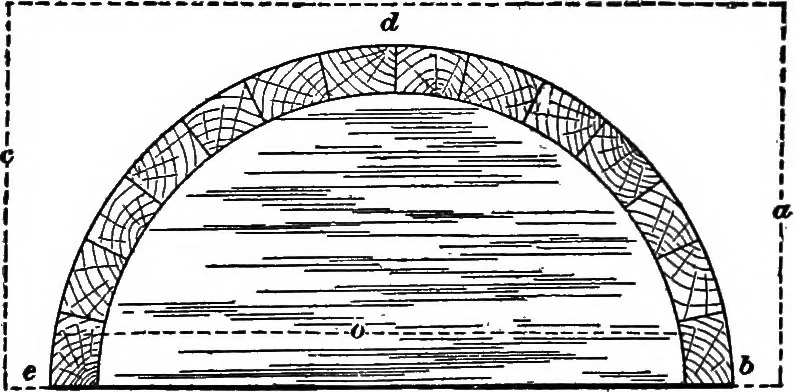

nd setting the end headsout far enough to clean up in good shape when you turn upthe piece. I cut up the staves in this way: Make a piece a couple offeet long, having a section like r in Fig. 25. Let ^ be asection of a stave; then make the piece r of such section aswill make the angle t, y, x,… … Fig. 26. thick edge toward saw. Now, having your stuff for stavescut up to the right length, the small cut shows a section ofone of these pieces before splitting into staves. The linesI, 2, 3, 4 show where it is to be sawed. Begin by sawingone stave from each piece a Uttle wider than necessary. 104…
Patternmaking
