Barrows, F. W. (Frank Wilson), b. 1853 · New York, N.W. Henley Pub. Co. · leaf 184

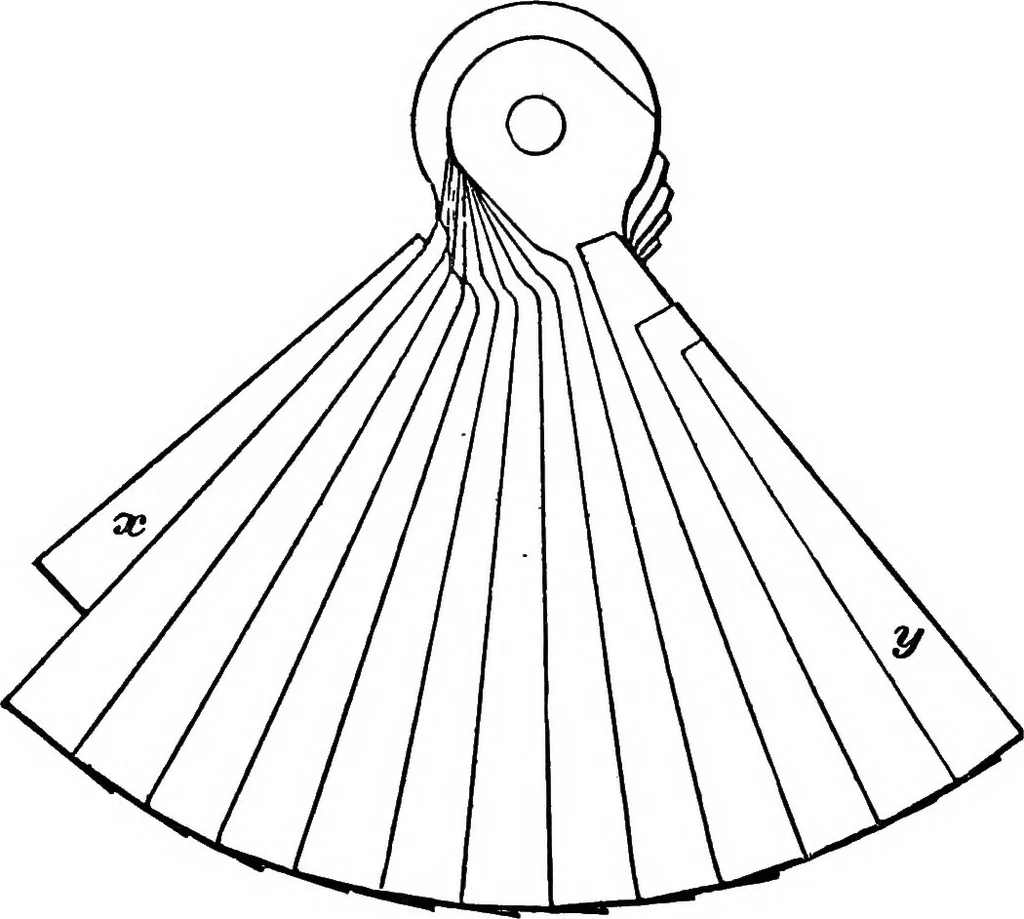

Fig. 76. plan to start by fastening the first course to a pair of tres-tles ; this keeps your work up level and gives a good chancefor the hand-screws. When it gets up too high, shift it to PROPELLER WHEELS. 183 the floor, always putting on one course at a time, and re-membering when we get above… … FiG. 77. tween 7 and 8, as was the rule below the centre. It will beseen by Figs. 76 and 77 that it requires two short coursesabove what is necessary for the length of hub; Fig 77 showsthe width of these courses so plainly that I dont think it isnecessary to say anything further about them except…
Patternmaking
