Thomälen, Adolf, 1865-, Thomälen Adolf. Kurzes Lehrbuch der Electrotechnik. English · London, E. Arnold · leaf 375

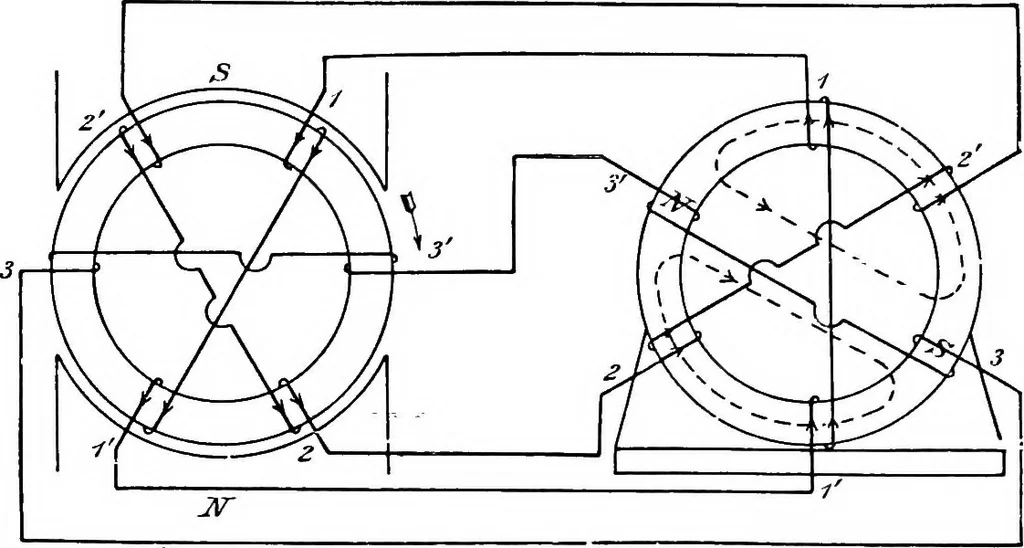

the motor may now be grouped together, andsimilarly 2 and i. The lines of force will be as indicated by the dotted 36o Electrical Engineering lines, and the north pole of the stator will be situated about coil 3. It isevident that the poles have rotated through 30° from the position they hadin Fig.… … Cfeneratnr Motor Fig- 365 113. Mesh or Delta Connection. The six wires between the generator and the motor in Figs. 364 and 365can be reduced to three by interconnecting the three phases. This can bedone in two ways; one, known as mesh connection, we shall consider
Electrical engineering
