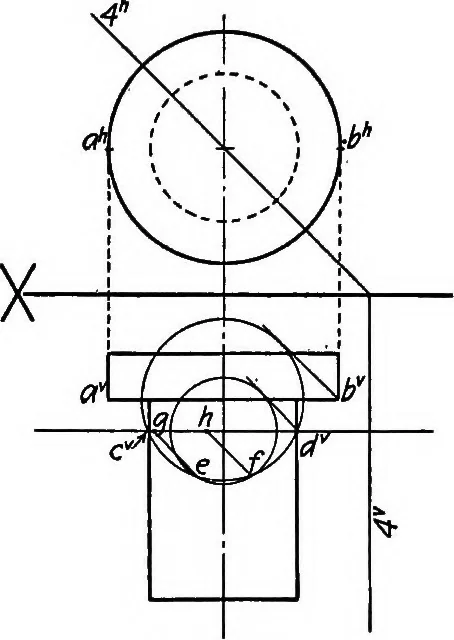

Pig. 141. Fig. 142. method, let us consider a cylindrical column with a circularlintel, as in Fig. 142, required to find the shadow of thelintel on the column. The lower circle ab is the line ofshade. Assume a vertical 45° plane through the commonaxis of column and lintel, and find the V projection…
