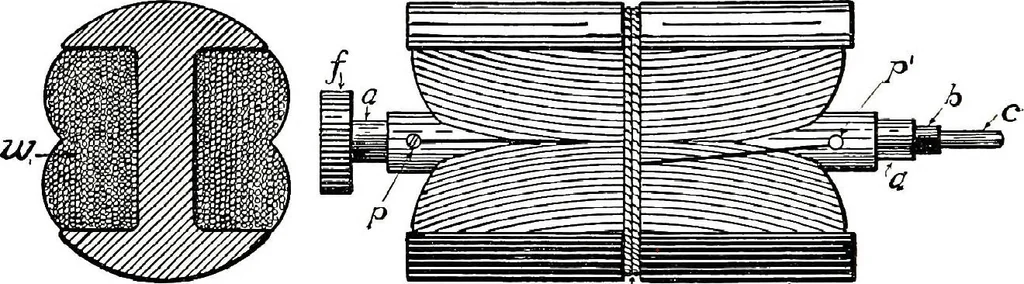

number of turns of fine wire wound on acast-iron core of the form shown in Fig. 78. In this figure, Arepresents a shuttle-shaped core of cast iroii, on which the coils ofwire, w, are wrapped. One end of the wire forming the coils isfastened to the pin, p, which is fastened to and is in metallic… … FIG. 7S.—ARM.-\TURE OF MAGNETO GENERATOR. from by the fiber bushing, b. Projections, a a, integral with thecore, are turned down to form bearings for the armature. Apinion, f, is carried on the end of the shaft, in order to transmit tothe armature the motion received from a large driving-gear…
