Mechanics of engineering (solids) : comprising statics and kinetics of solids, and the mechanics of the materials of construction, or strength and elasticity of beams, columns, shafts, arches, etc. : for use in technical schools (1911)
Church, Irving P. (Irving Porter), 1851-1931 · New York : Wiley ; London : Chapman & Hall · leaf 471

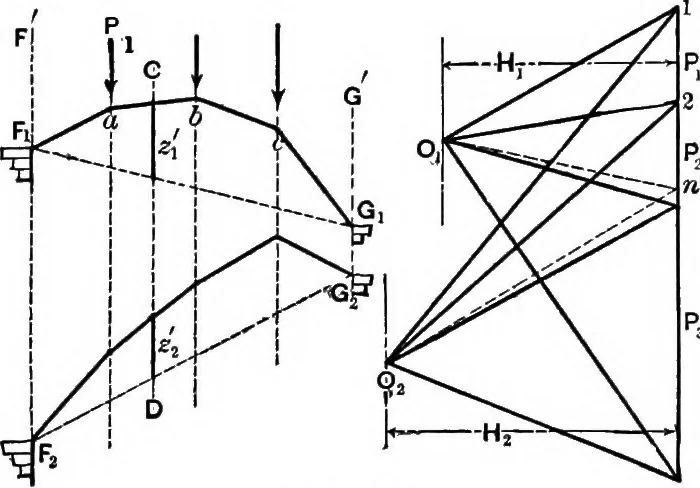

aZ» II to Oi.. 2, and so on until finally apoint Gi, in G, is determined; then the figure Fi .ahc Gi isan equilibrium polygon for the given loads and load verti-cals, and Oi... 1234 is its force diagram. The formeris so called because the short segments P,a ah, etc., ifconsidered to be rigid and… … ARCH-SIBS. 451 rium polygons may be drawn for the given loads andabutment-verticals, by choosing different poles in the forcediagram. [One other is shown in the figuie; O2 is itspole. {Fi Gi and F2 <^« are abutment lines.)] For all ofthese the following statements are true : (1.) A line through…
