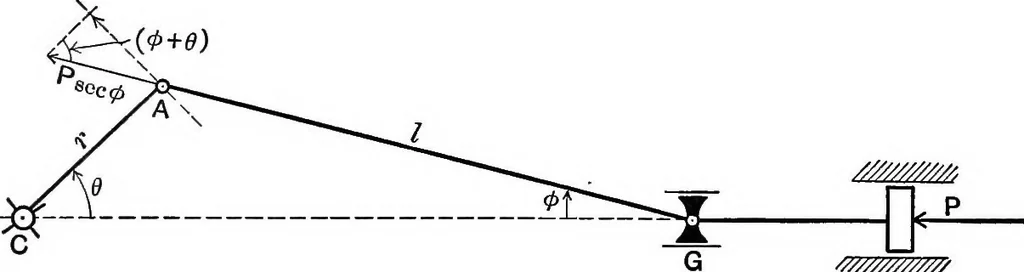

-rod be I and ofthe crank r. As a triangle of forces will show, the forcetransmitted along the connecting-rod is P sec <t>. Thisforce, acting at A along the center line of the connecting-rod, suffers a displacement ds = rdd at right angles to AC. 28 APPLIED STATICS The work done during this… … /////////M W/////////// Fig. 21 Here 0 must be expressed in terms of & before integrationis possible. From hCGA by the law of sines we have sin (> = - sin Q,I and as W = Pr I sec <j) (sin 4> cos 6 + cos ^ sin 6)Jo (tan ^ cos ede-{- sin B) dd, 0 dd we have W = Pr sin Bdd-{- l sin d cos…
