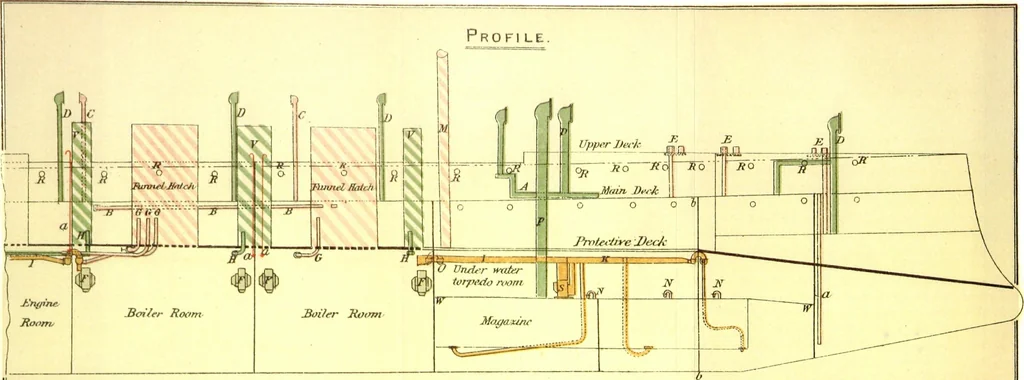

finds its way out through louvres into thecompartments through which K passes. A number of pipes alsolead from this trunk to supply the magazines, shell rooms, &c., asindicated in the Plate. Arrangements are made so that thetrunk I can be connected to one of the steam fans in the foremostboiler… … Plan below Protective: Deck.
