Architectural drawing : a textbook that combines the parctical instructions and examples that the student needs, with the suggestive programs, supplementary problems, etc, required by the teacher, written by an architect of wide experience who has also taught the subject for years at Teachers' College, Columbia University, and Mechanics' Institute, New York (1920)

Teale, Oscar S · New York : U.P.C. Book · leaf 208

An illustration from Architectural drawing : a textbook that combines the parctical instructions and examples that the student needs, with the suggestive programs, supplementary problems, etc, required by the teacher, written by an architect of wide experience who has also taught the subject for years at Teachers' College, Columbia University, and Mechanics' Institute, New York, 1920, leaf 208

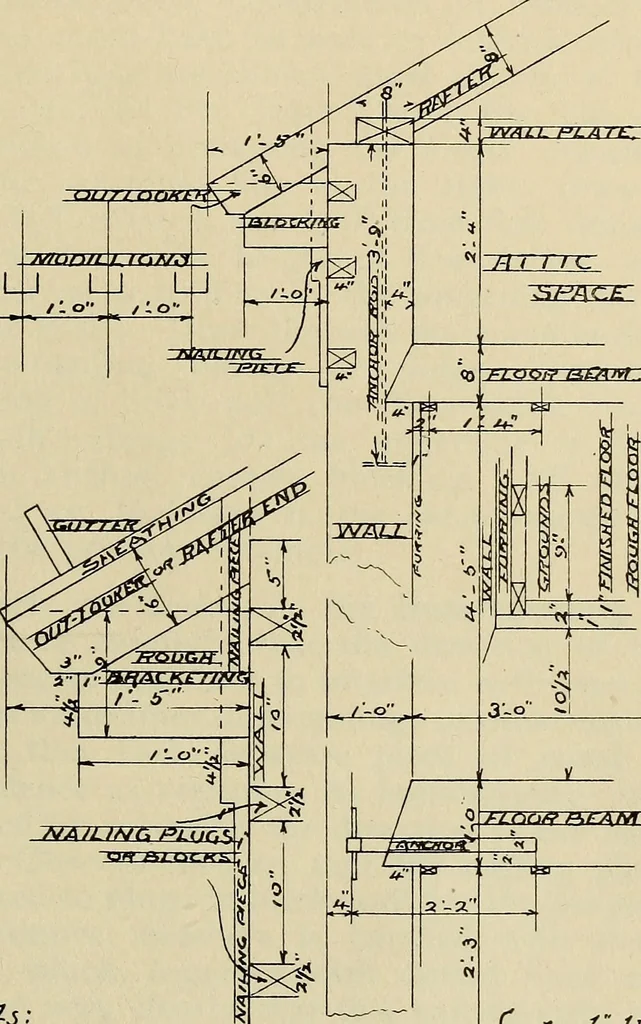

(2^0S2 £KOT^L^^ iEini9. uuri aciSE … jaqcttVftUv coftNice FLfteifi? P.rxj*r tfcccle l^lIT. HSUJQ ORTHOGRAPHIC PROJECTION—CORNICE, ETC. 207 This is another chart based on the regular course atCooper Union. It represents an outer wall of a brickhouse with cornice, roof construction in connectionwith wall, and room base (a part of…
