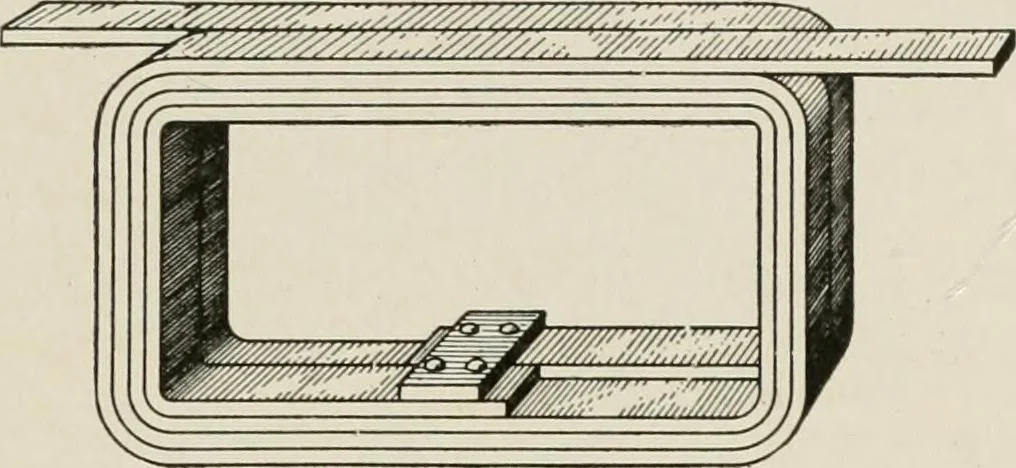

have pieces ofstrong tape wound in between the layers and lapped at intervals soas to bind them together. The completed coil is then served with twoor more layers of tape, each separately soaked in insulating varnish. 174 DESIGN 165 The whole coil is soaked in an insulating varnish and then bakedin… … Fig. 180. Strip-Wound Coil Bringing Out and Fixing Ends. A common means for bringingout the ends of coils is shown in Fig. 186. Copper strip, laid behindan end-sheet of insulating material, makes connection to the innerend, as shown in the lower part of the figure; while another strip,similarly…
