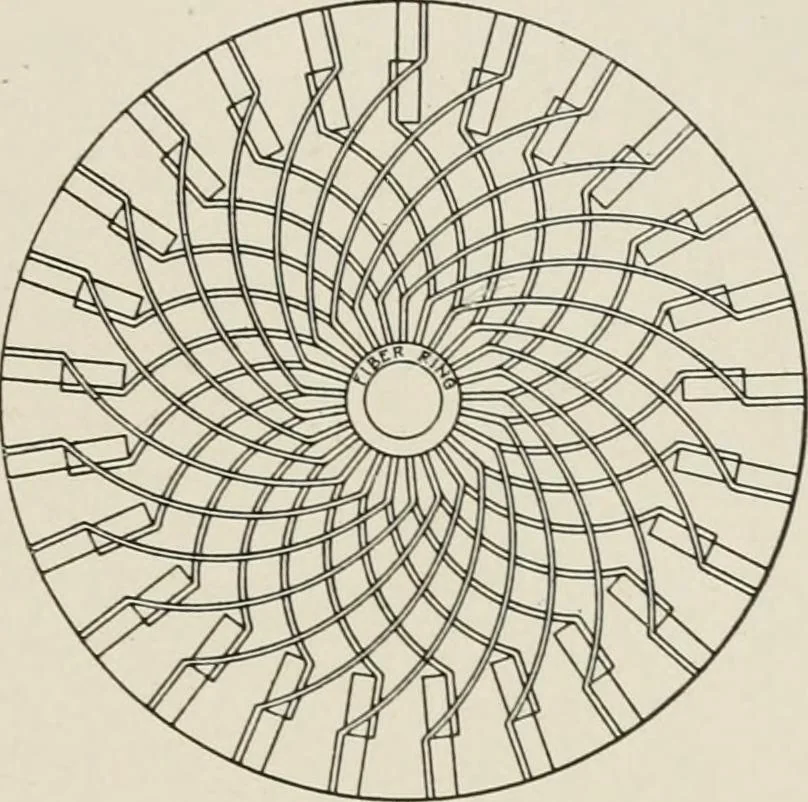

objections to the handwindings. In Fig. 205, whichillustrates this construction, eachinductor in the form of a bar is connected to the next by means of two evolute spiral copper strips,one bending inwardly, the other outwardly, their junction being insome cases secured to a block of wood upon the… … Fig. 205. Evolute Armature Winding u ^CF
