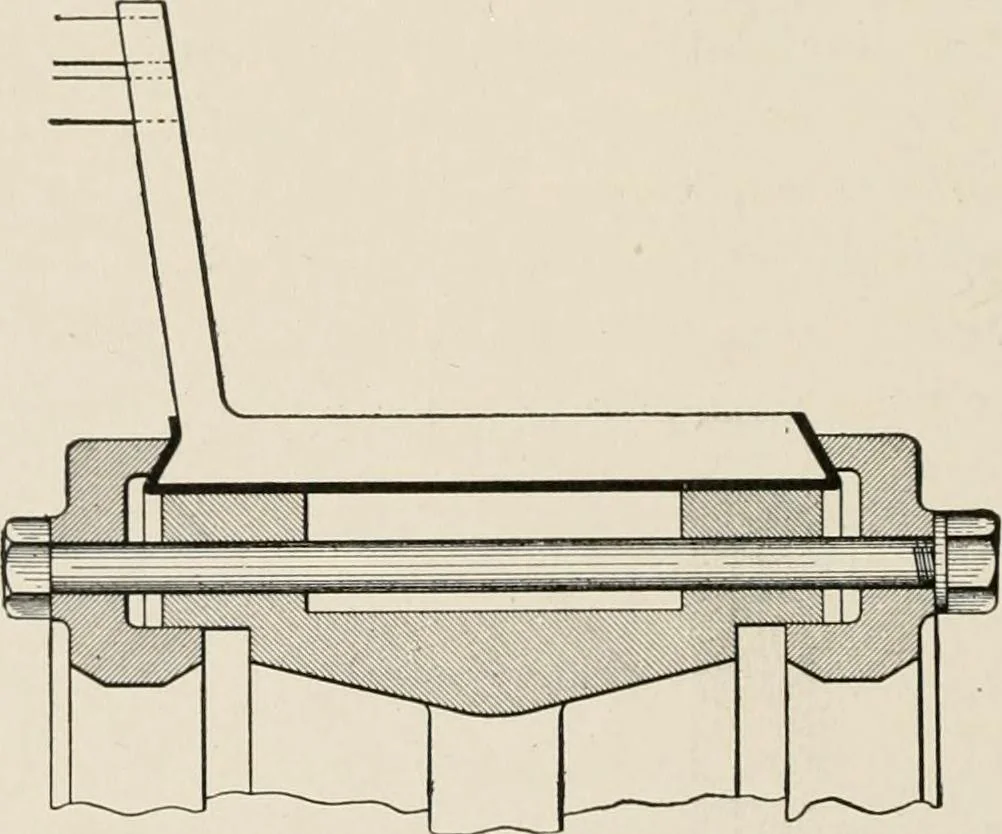

Fig. 231. Commutator Construction for Large Machines. Support for Commutator isBolted to Armature Spider temporarily around the outside with a strong iron clamp, or forcingthem into an external steel ring under hydraulic pressure. Theyare then put into a lathe, and the interior surface is bored… … Fig. 232. Commutator Mounted in a Separate Spider Secured to Shaft which the ends are turned up, with the angular hollows to receivethe clamping pieces. The whole is then mounted with proper insu-lation upon the sleeve, and the clamping end-pieces are screwed up. 196 DESIGN 187 It is then heated,…
