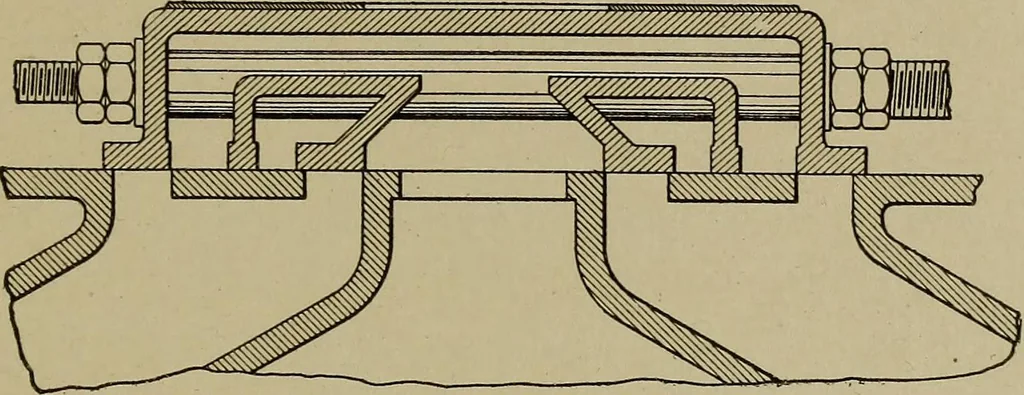

ell separated from the exhaust, and the valve-rod stuffing box is exposed to exhaust steam only. This is a goodarrangement for the high-pressure cylinder; if used for a cylinderin which there is a vacuum, air may leak into the exhaust spacethrough the valve-rod stuffing box. With this arrangement,… … Fig. 45. Section of Double-Ported Slide Valve is the same except that it is balanced so far as the steam pressure isconcerned, the power to drive it being only that necessary to over-come the friction due to the spring rings. Fig. 44 shows a section of the piston valve ana the high-pressurecylinder…
