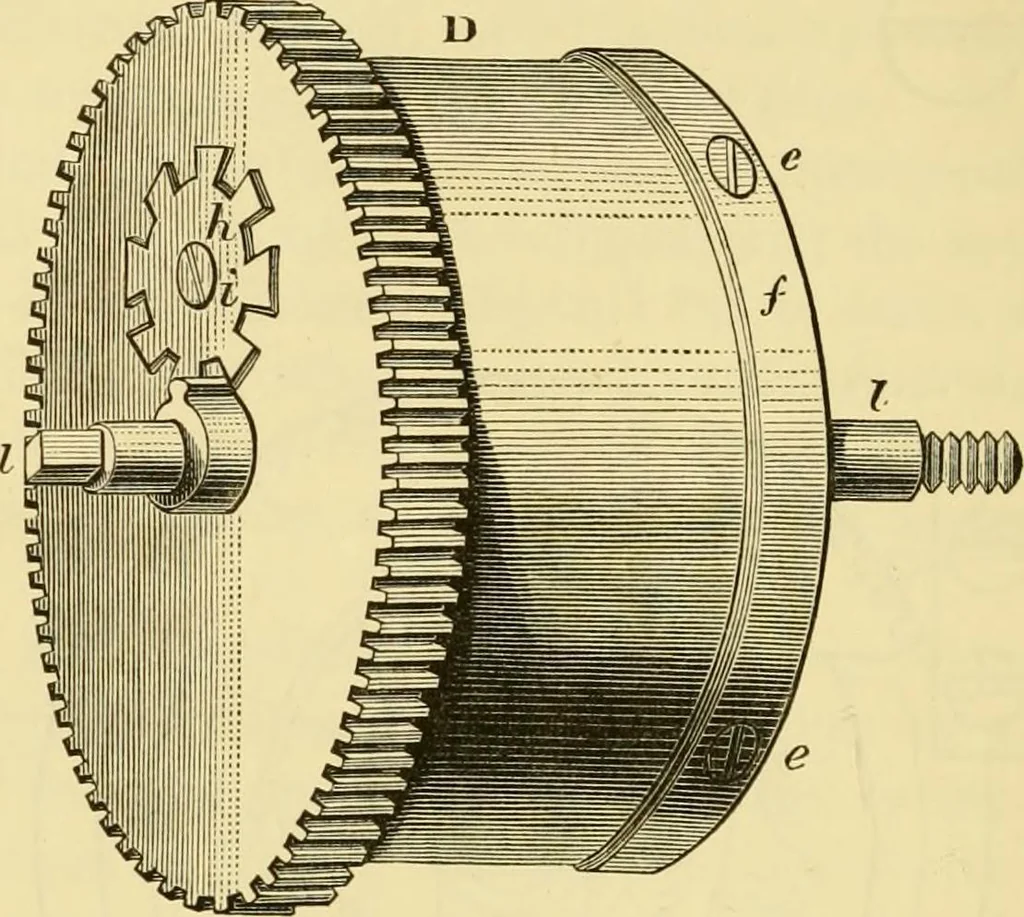

I70 OFFICE TESTING. Fig. 13 represents a perspective view of the spring drum. YVi. 13. … Let the clockwork run down, remove tlie bracket aby taking out the screw s, remove the steel spring hh bytaking out the screw a, and then take out the ratchetwheel c; the pawl g remains fixed to the plate. Nowremove the covering plate which is fastened by the fourscrews c?, and the drum D…
