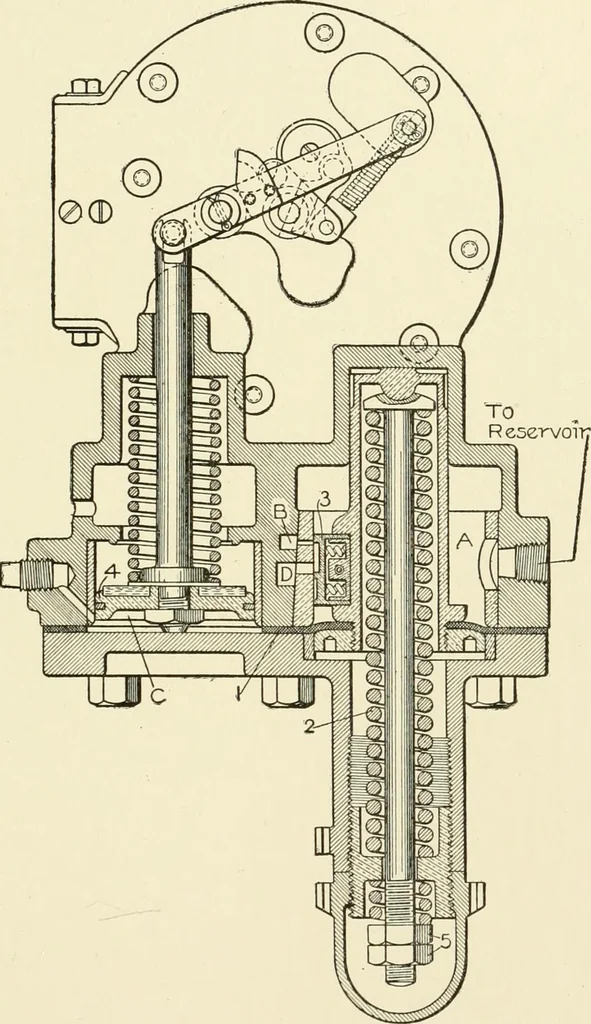

Fig. 89. Front View of Pump Governor view in Fig. 89, and in section in Figs. 90 and 91. The chamberA is in communication with the reservoir. The other side of thediaphragm 1, which forms one wall of the chamber A, is open tothe atmosphere. The diaphragm 1, therefore, is subjected to reser- 190… … Fig. 90. Part Section of Pump Governor the diaphragm 1 in such a manner that any movement of the latteroperates the former. When the maximum pressure is attained, theregulating spring 2 is so adjusted that the diaphragm 1 is pressed 191 96 ELECTRIC RAILWAYS
