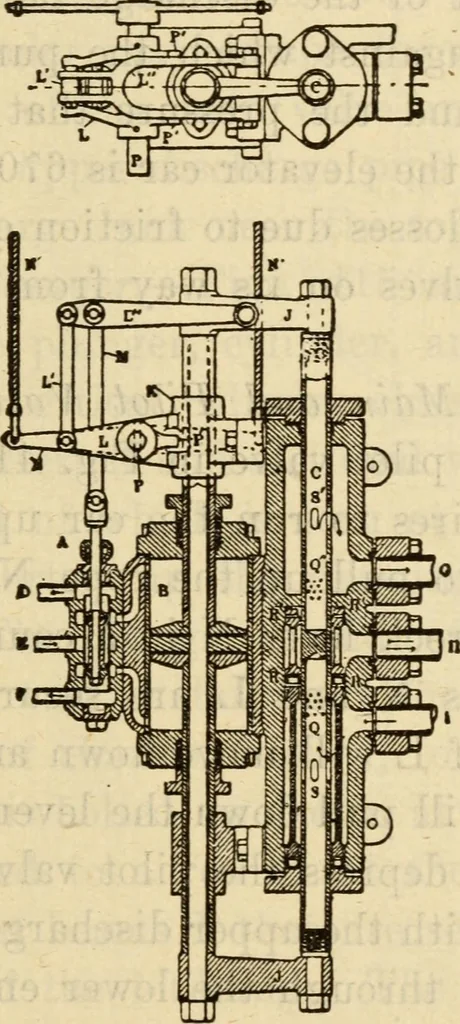

lve of large enoughsize to be durable. As is shown in Fig. 413, the tank intowhich the lifting cylinder discharges is placed high enough Hydraulic Elevators 991 to give enough pressure to operate the motor piston, andfrom this tank water passes through the pilot valve A tothe cylinder B. If the… … FiG. 414 sure of about 80 pounds per square inch is used to operatethe motor piston. It might be thought that having to discharge the waterin the lifting cylinder against a back pressure of 80 poundswould cause considerable loss, and make the high-pressuresystem objectionable on the score of low…
