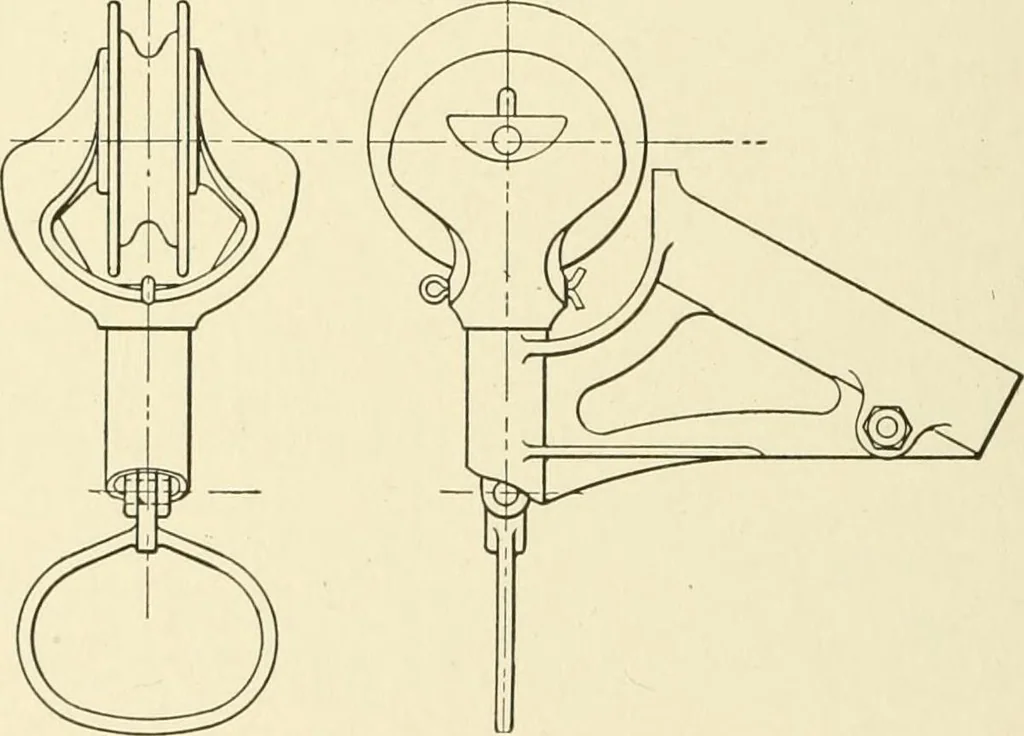

Fig. 14. Trolley Suspension Method for English Railless Sy.stem trolley and of the under-running bow features. On the negativeconductor we have two trolley wheels 12 inches apart carrying aC-shaped arm to which is connected the aluminum bow collector forthe positive wire. The upper and lower… … Fig. 15. Views of Trolley Pulley Showing Ring by Which Trolley Is Shifted from one another at A and B, Fig. 13. The springs H exert a pres-sure of about 32 pounds against the conductors and allow a limitedupward and downward motion of the bows. The whole device isfree to move a considerable…
